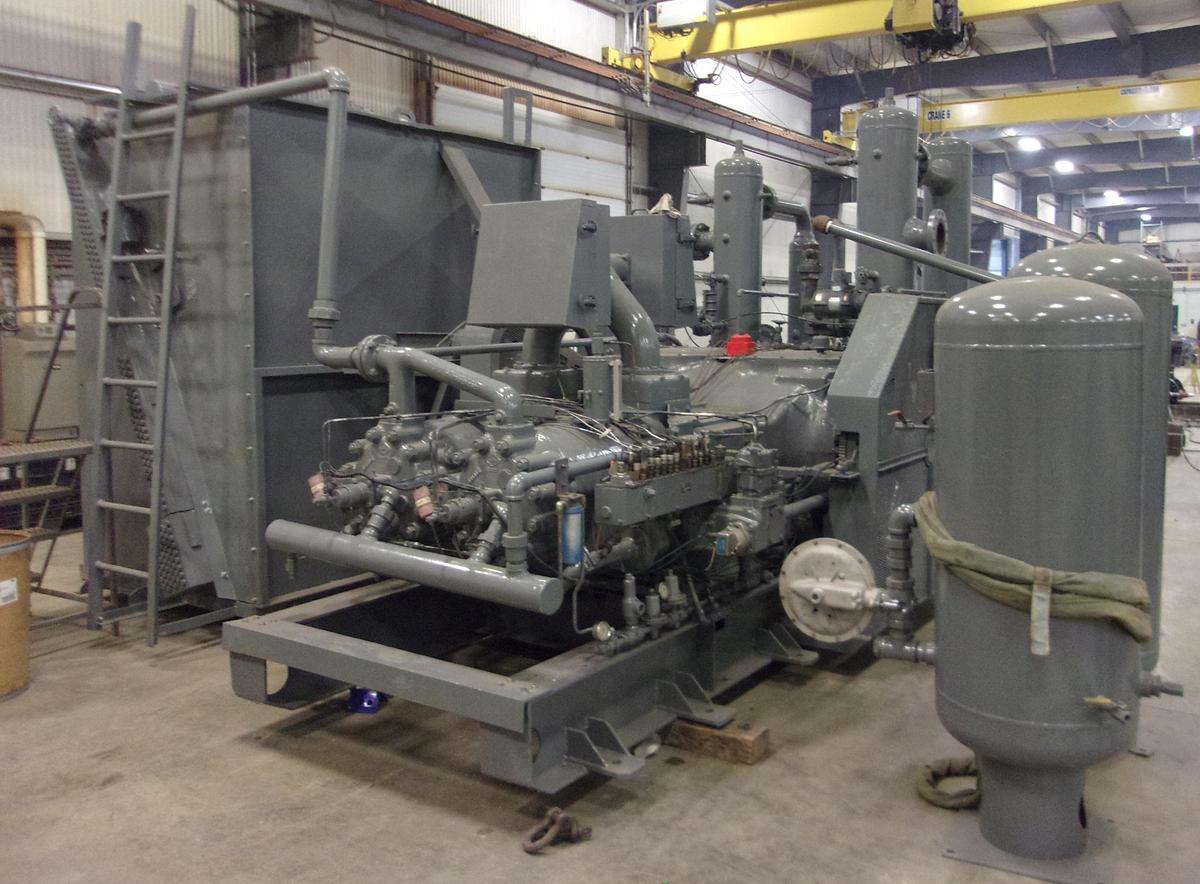

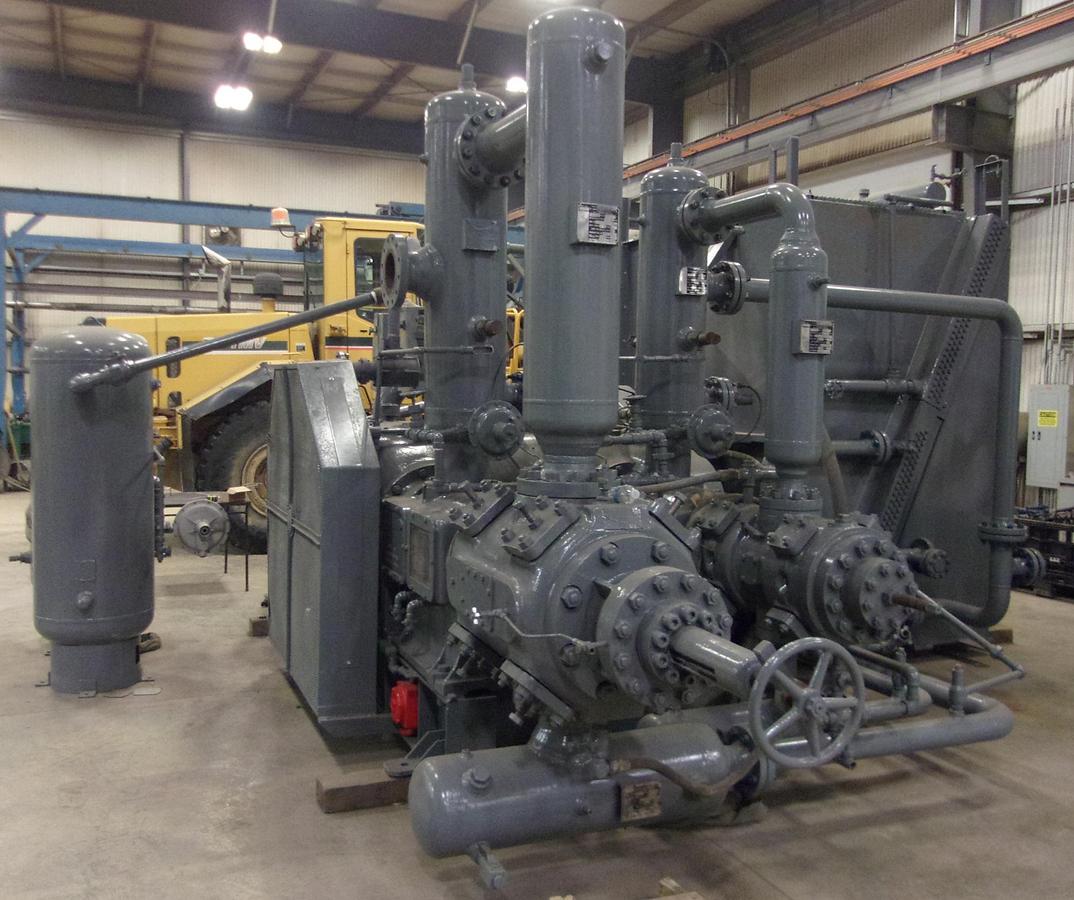

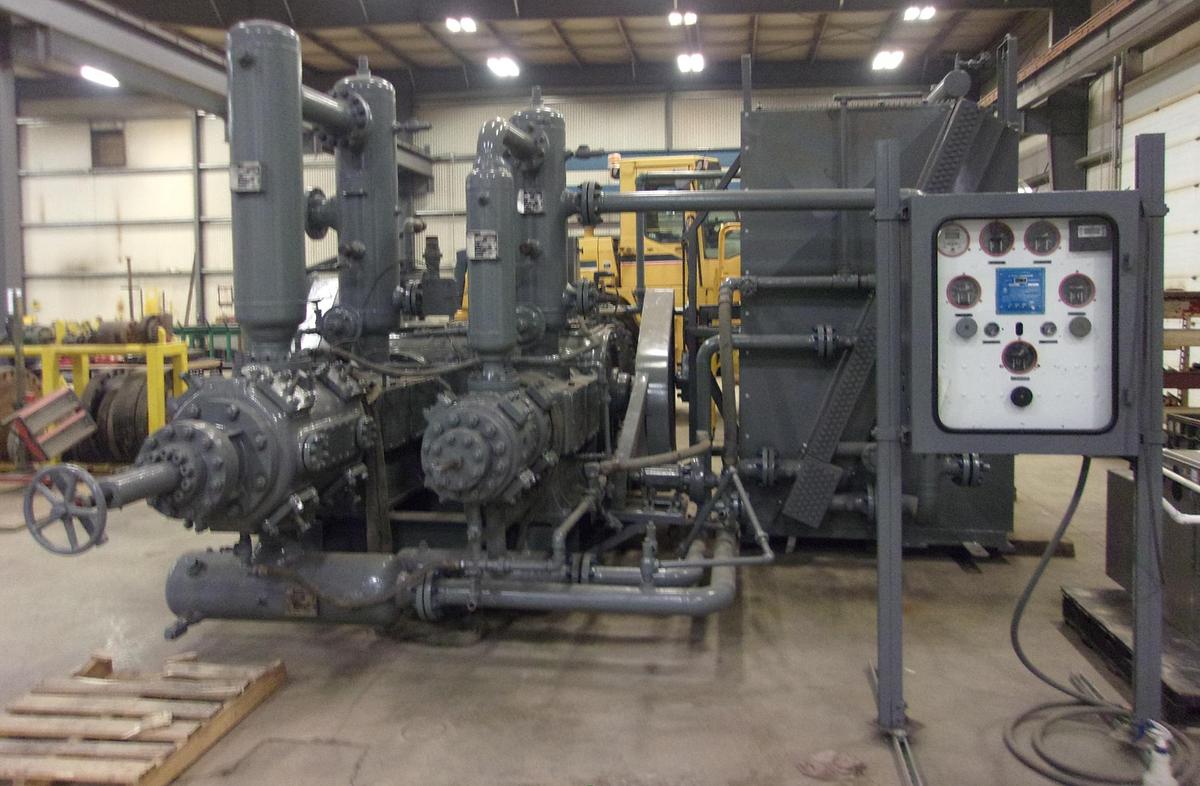

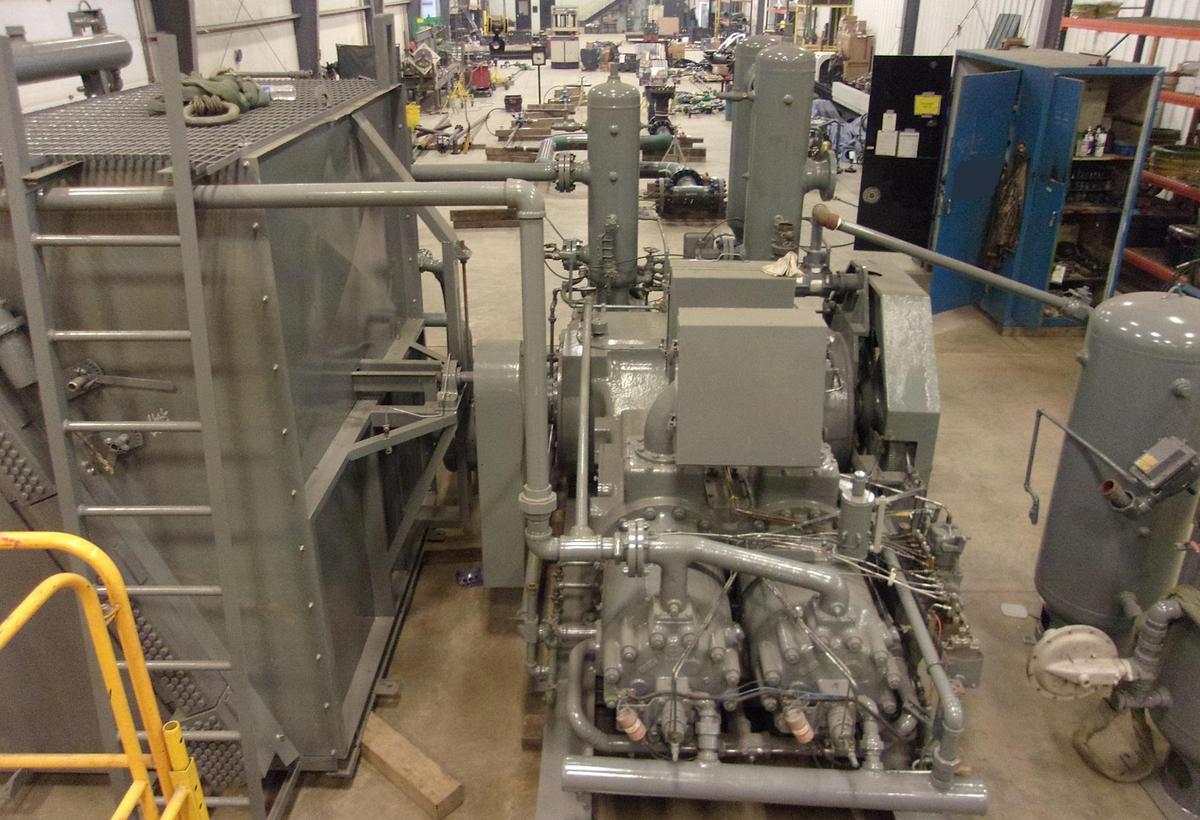

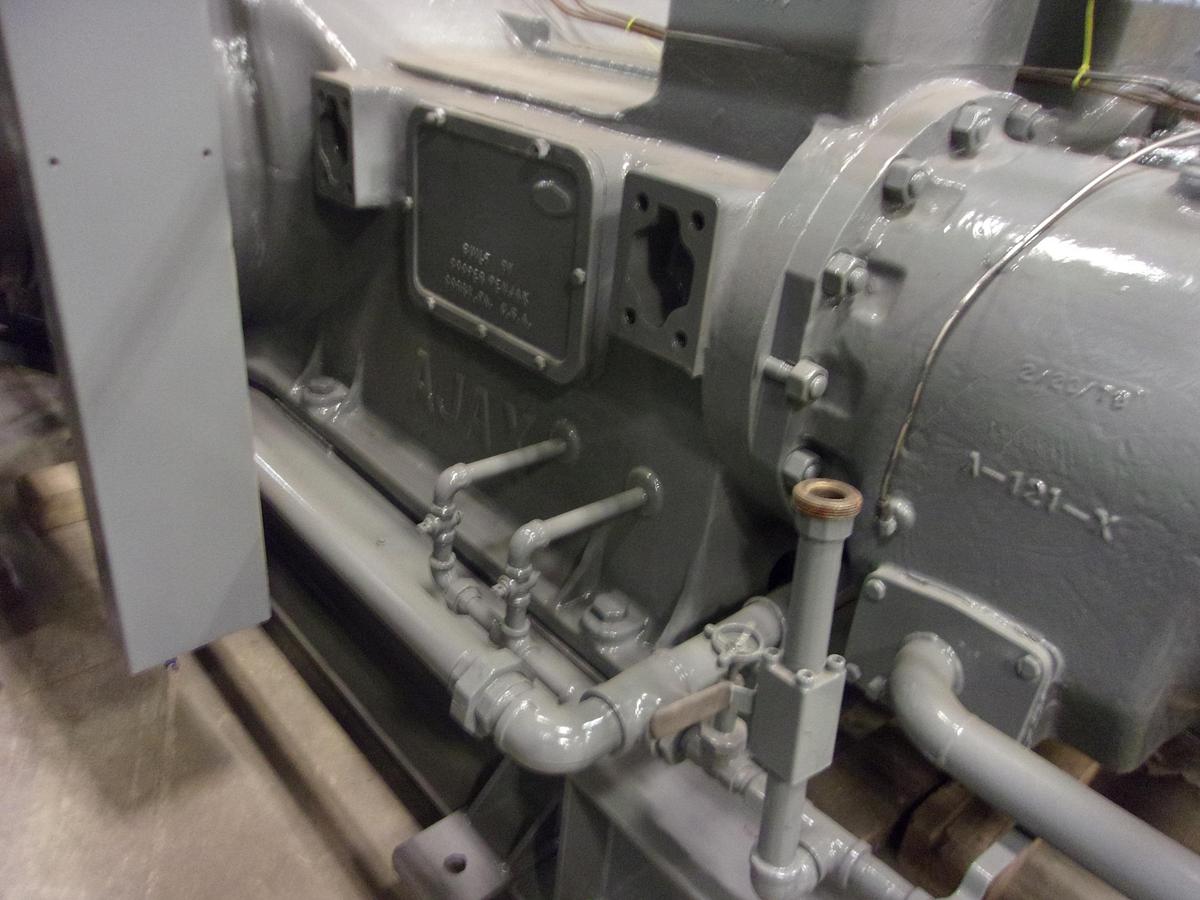

Used (Rebuilt) AJAX Integral Natural Gas Engine-Compressor

Used (Rebuilt) AJAX Integral Natural Gas Engine-Compressor

Location:Bolivar, NY

Description

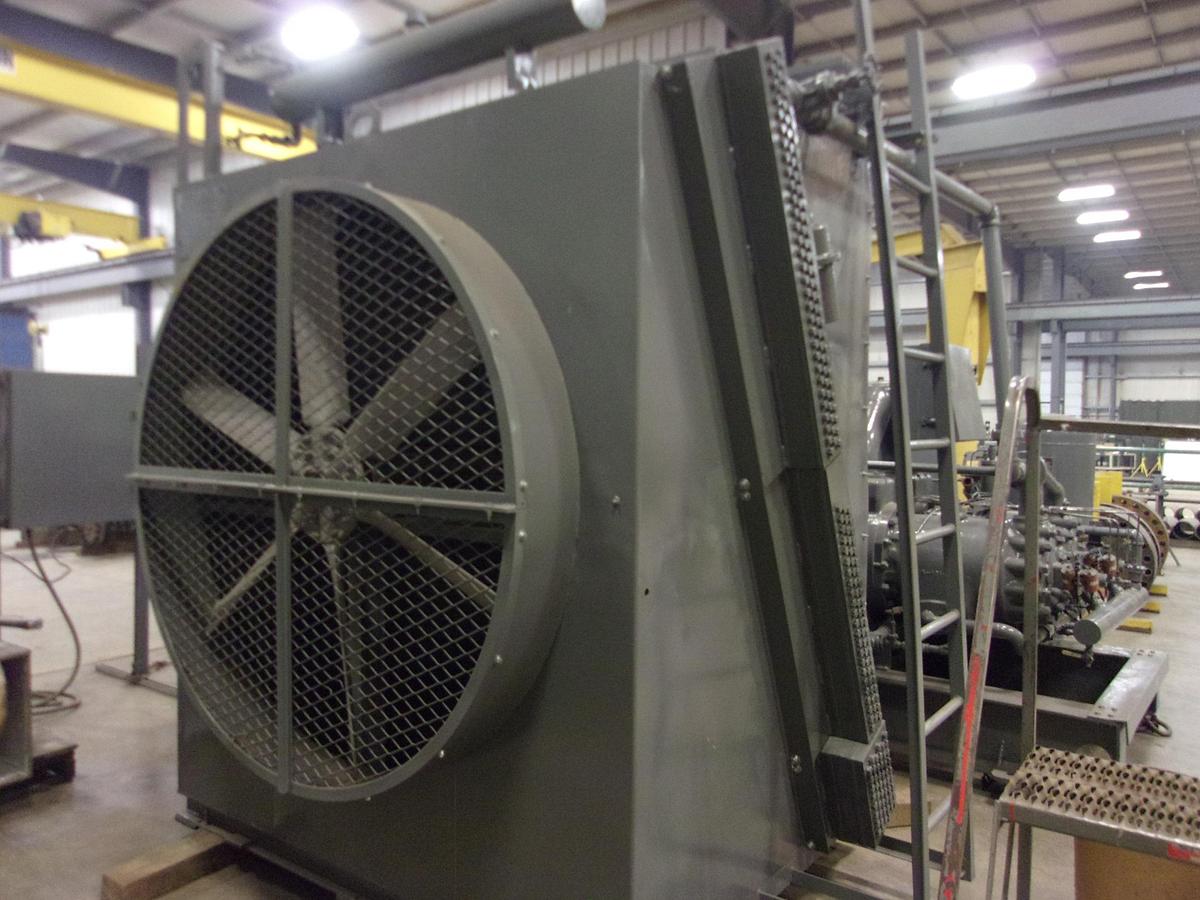

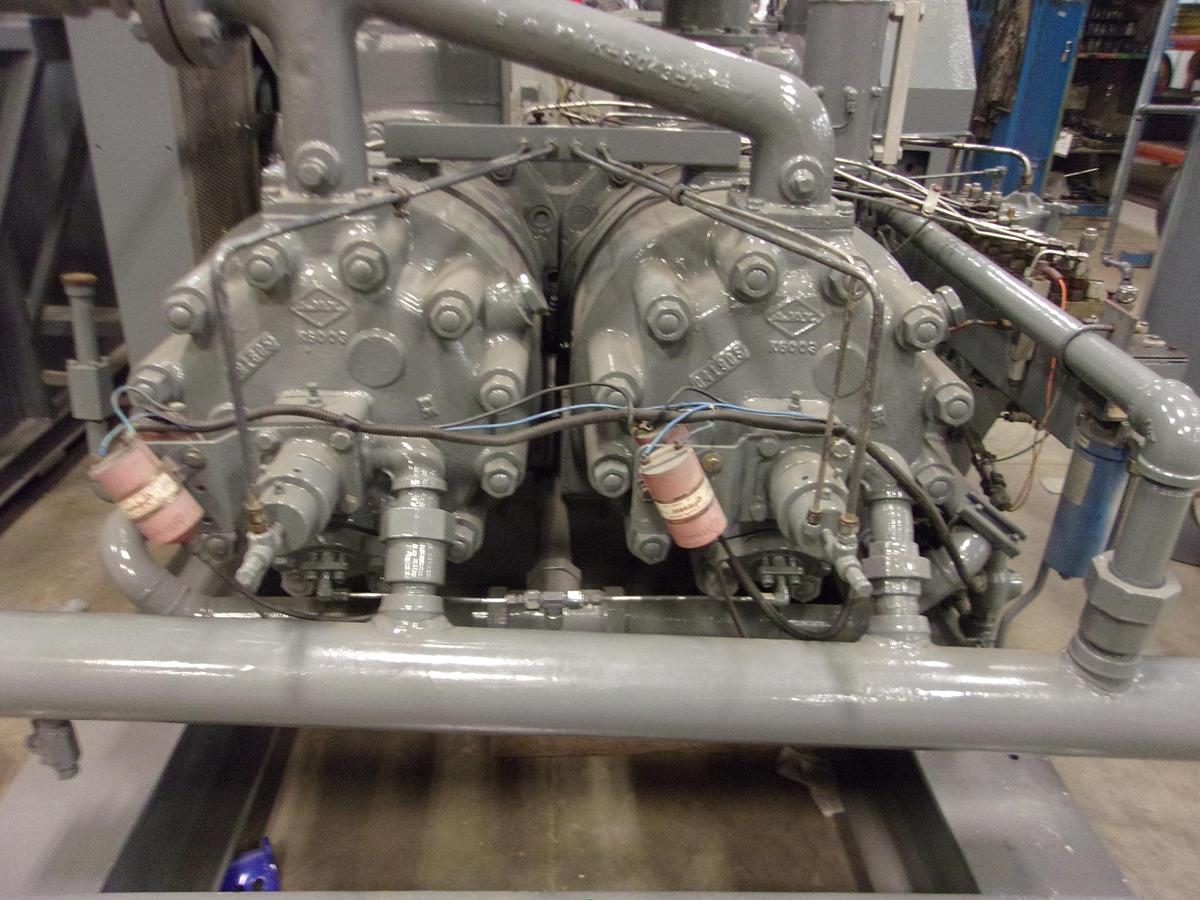

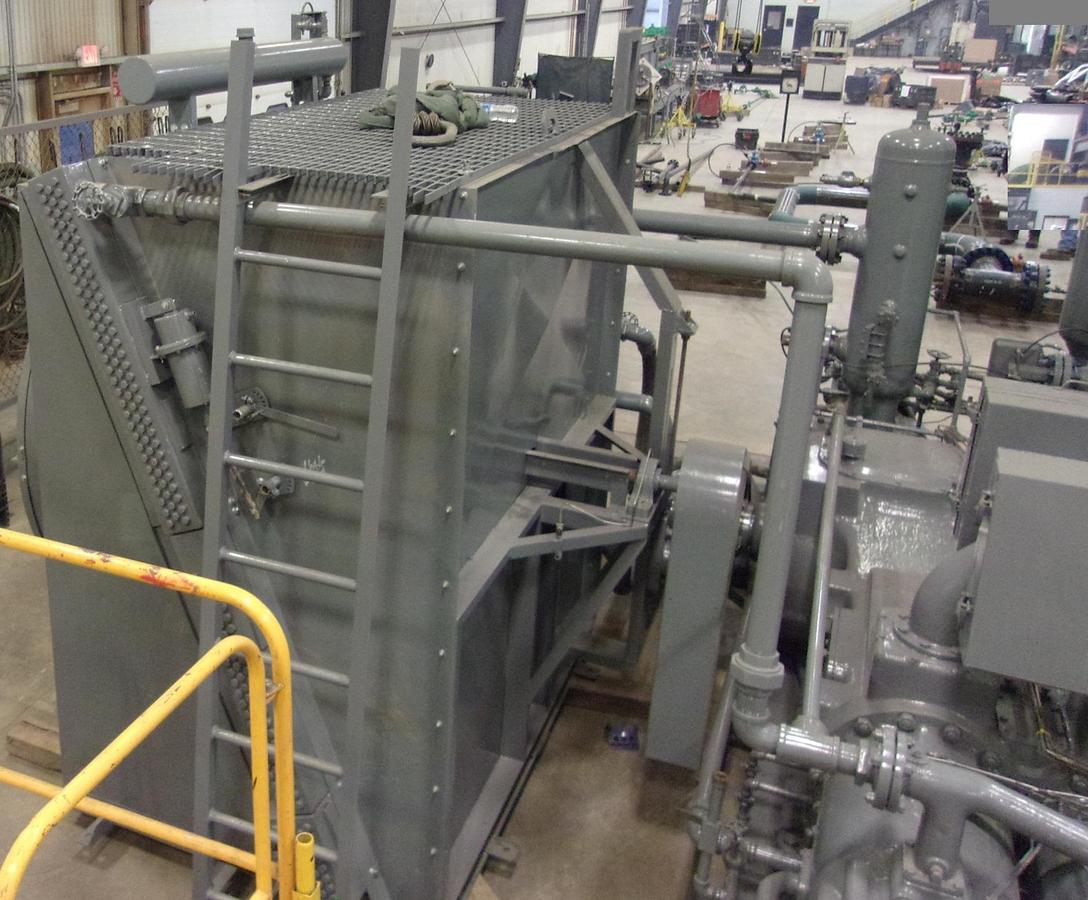

Used (Rebuilt) AJAX Integral Natural Gas Engine-Compressor. Model DPC-280LE. Rated HP (bhp) 269. Has 13-1/4" Bore and 16" stroke. Rated speed 400 RPM. BMEP: 60.3 PSI. Has (2) power cylinders. Desing Conditions: Suction Pressure 60 PSIG, Discharge Pressure 960 PSIG, Calculated flow 1.58 MMSCFD (14.7 & 60), Compressor Brake HP 253, LP VVCP Setting: 1.0 Inch. Inlet temperature 80 DEG F, Inter/Aftercooling Req'd 130 DEG F, Elev above sea level 1500 Ft., S.G. 0.65, Ambient Air Temp. 100 DEG F, Product: Dry Sweet Natural Gas. Integral Build Engine and compressor share one crankshaft, reducing mechanical loss. Unit was painted 5 years ago, stored inside. Rebuilt in 2007, put never put back into service. FOB: Bolivar, NY

Specifications

ManufacturerAJAX
ModelDPC-280LE
ConditionUsed
Stock NumberDCTA0426-0004
