Used 93-Ton Air Cooled Advantage Titan Central Chiller with Remote Outdoor Condensers (2023) Model: TIP-100A-MZC-3P

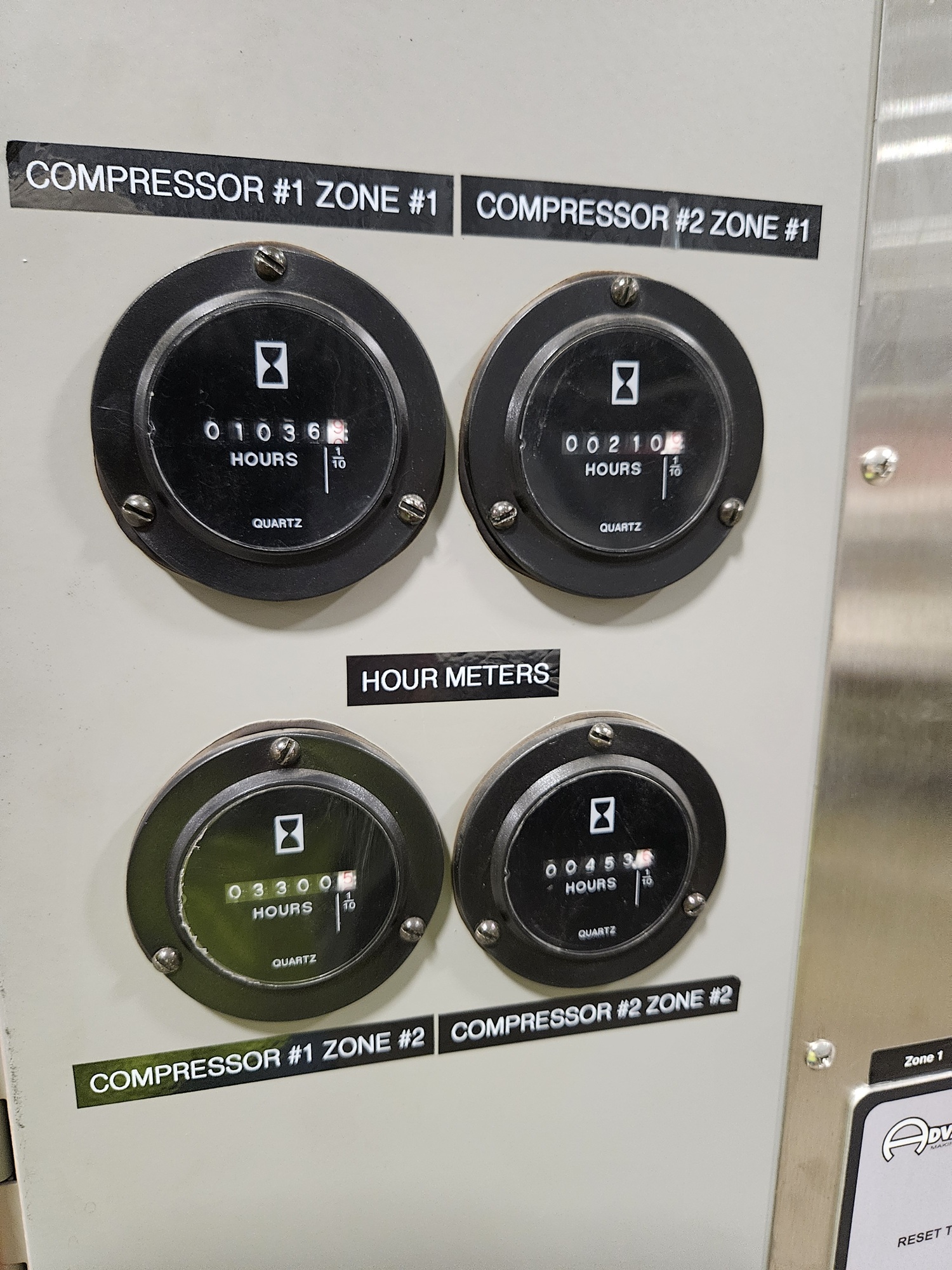

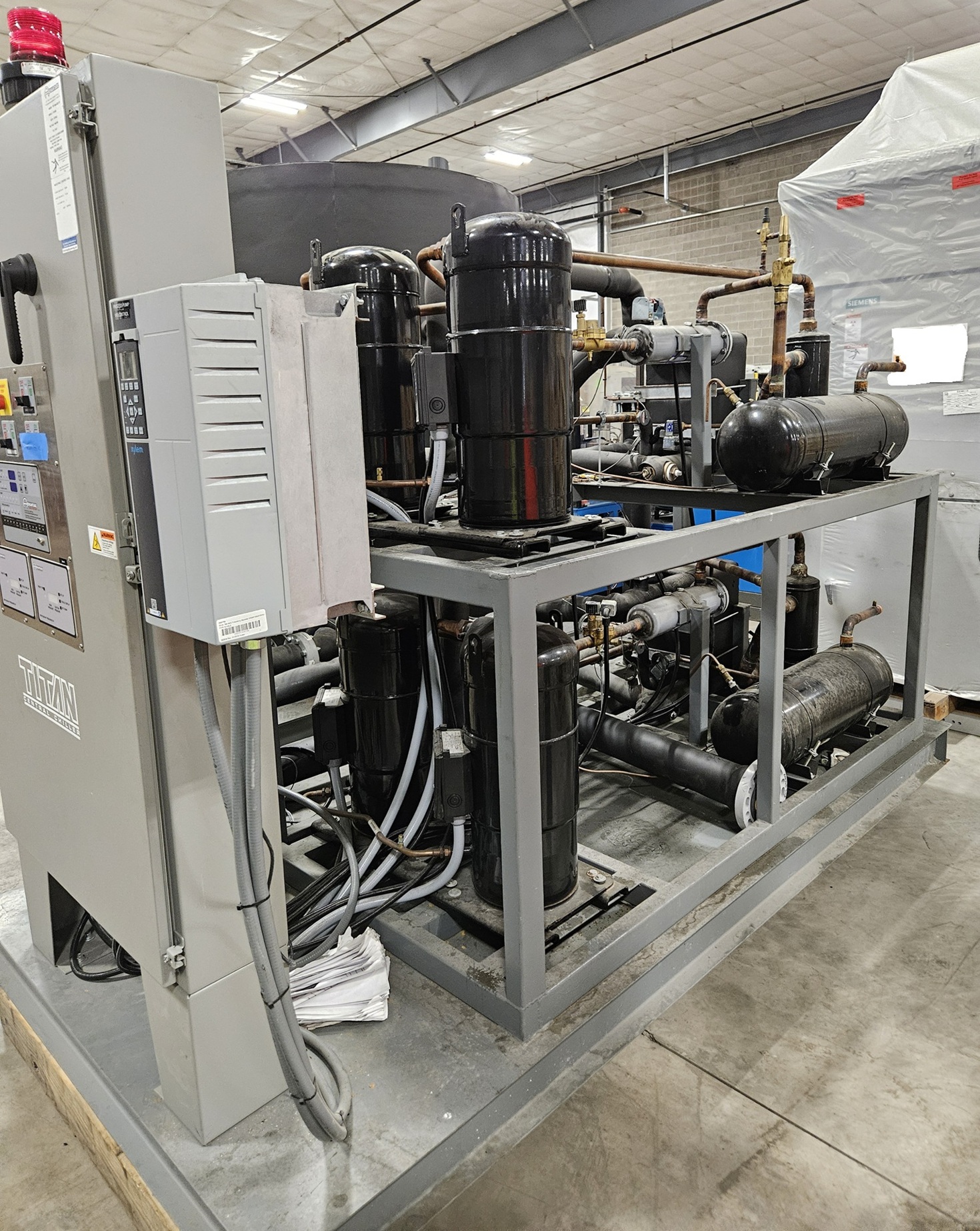

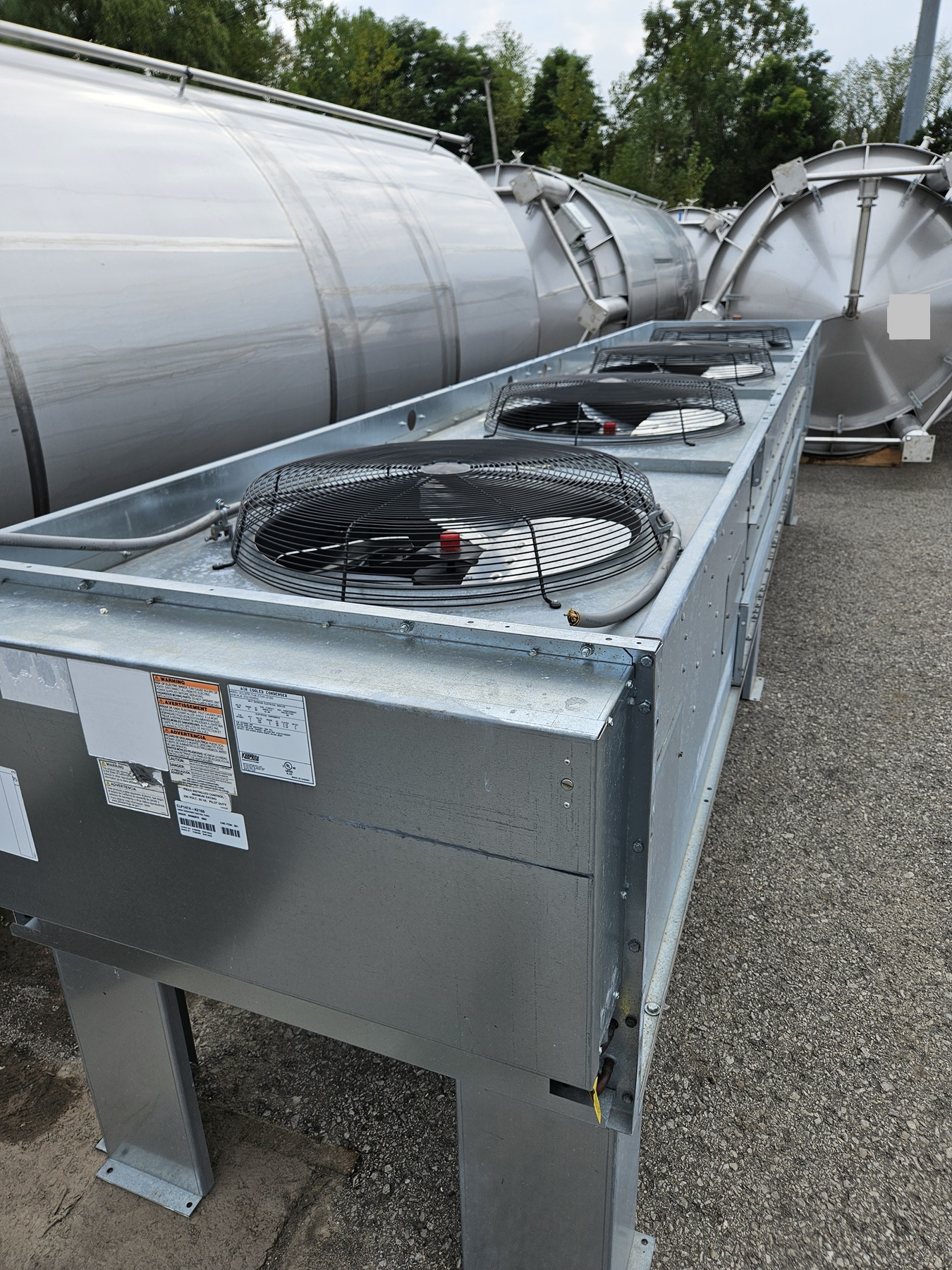

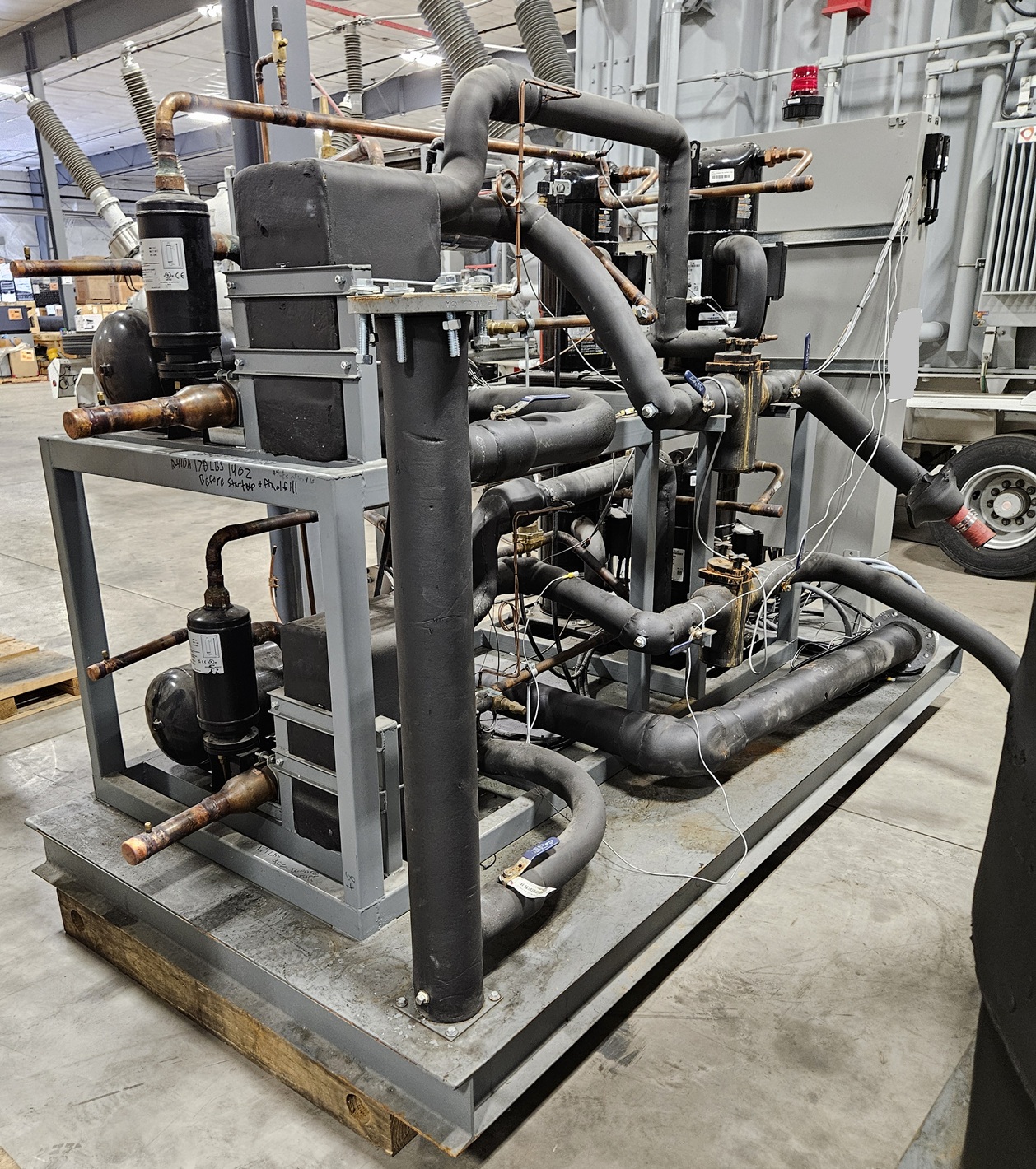

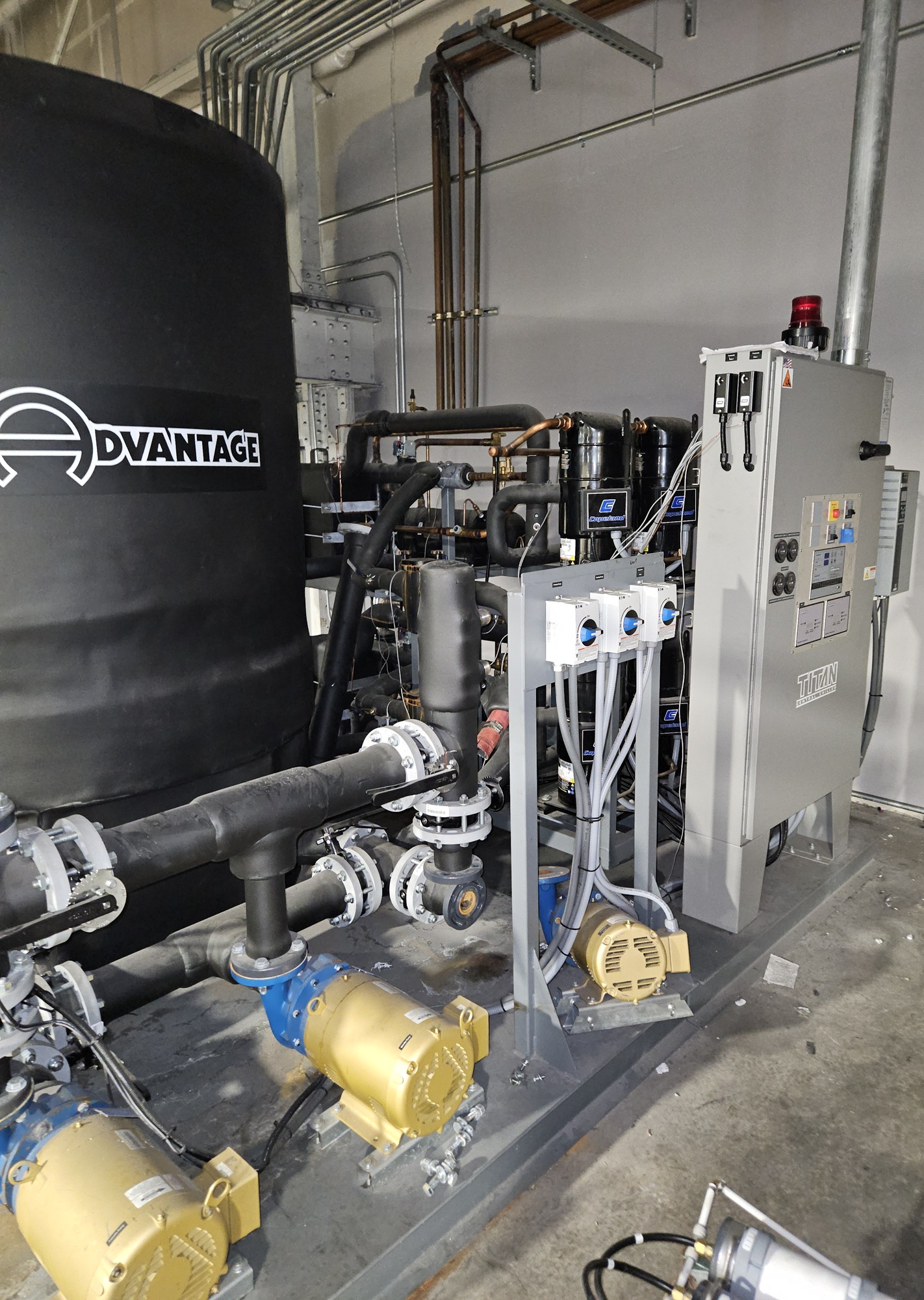

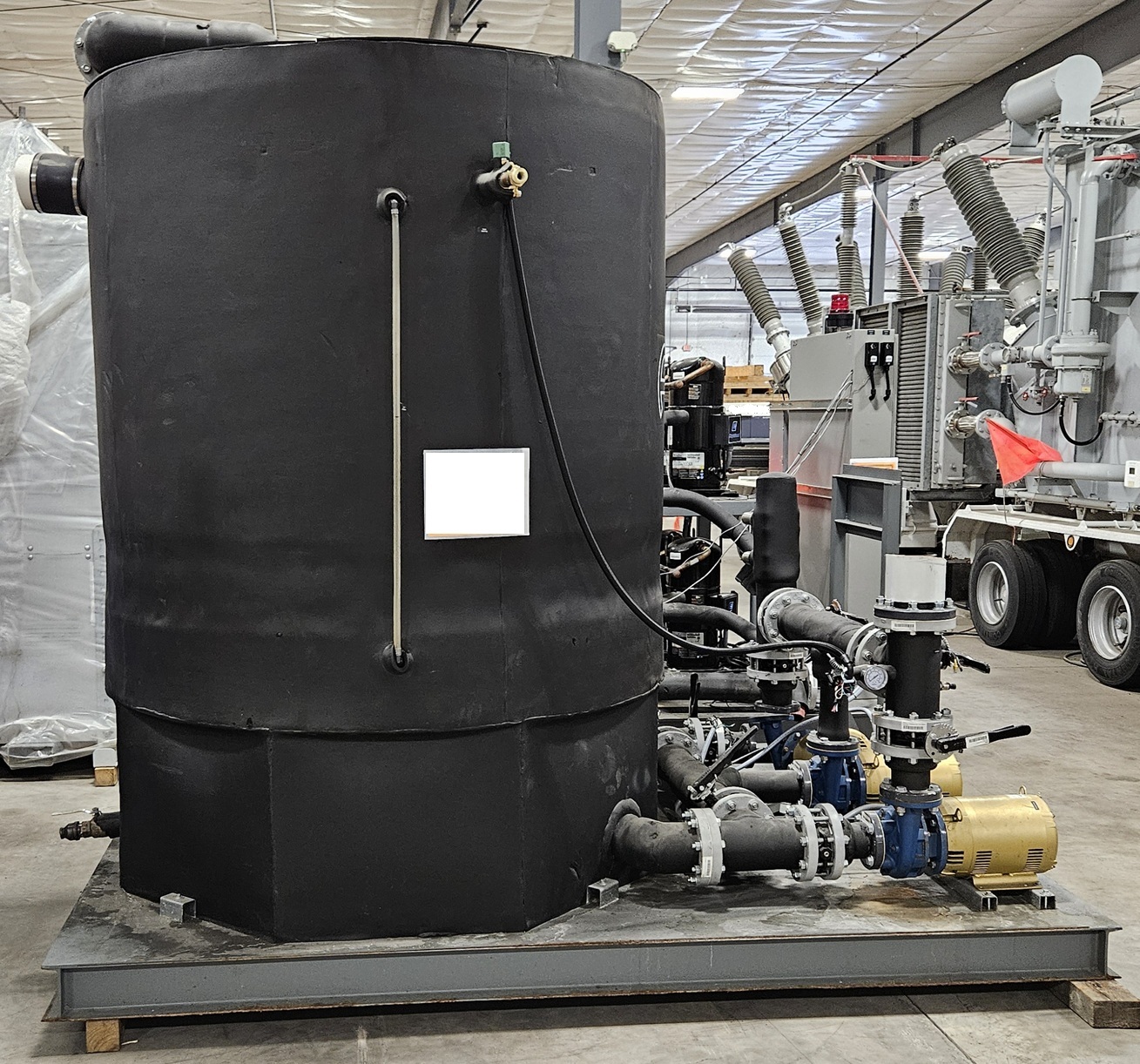

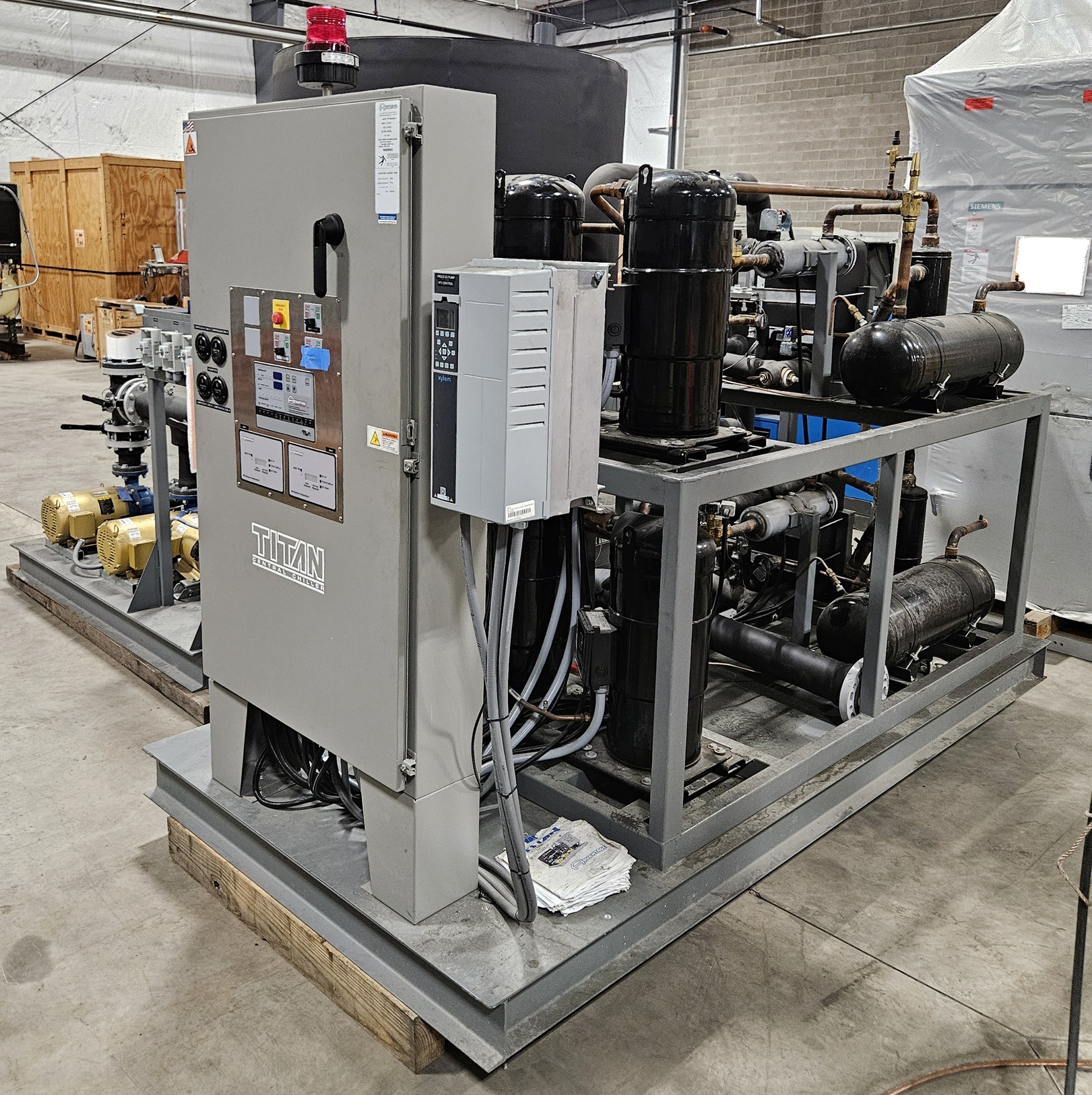

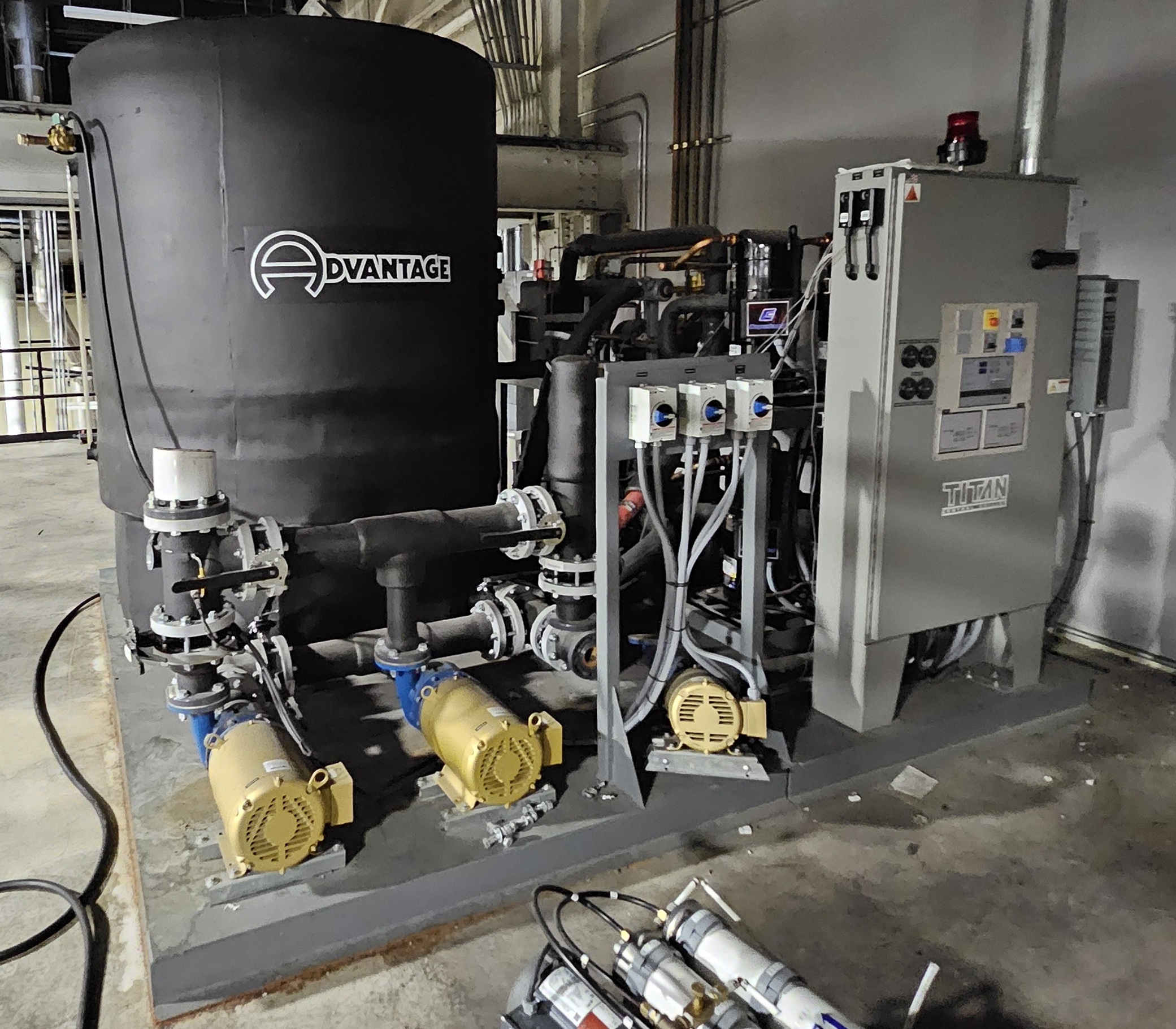

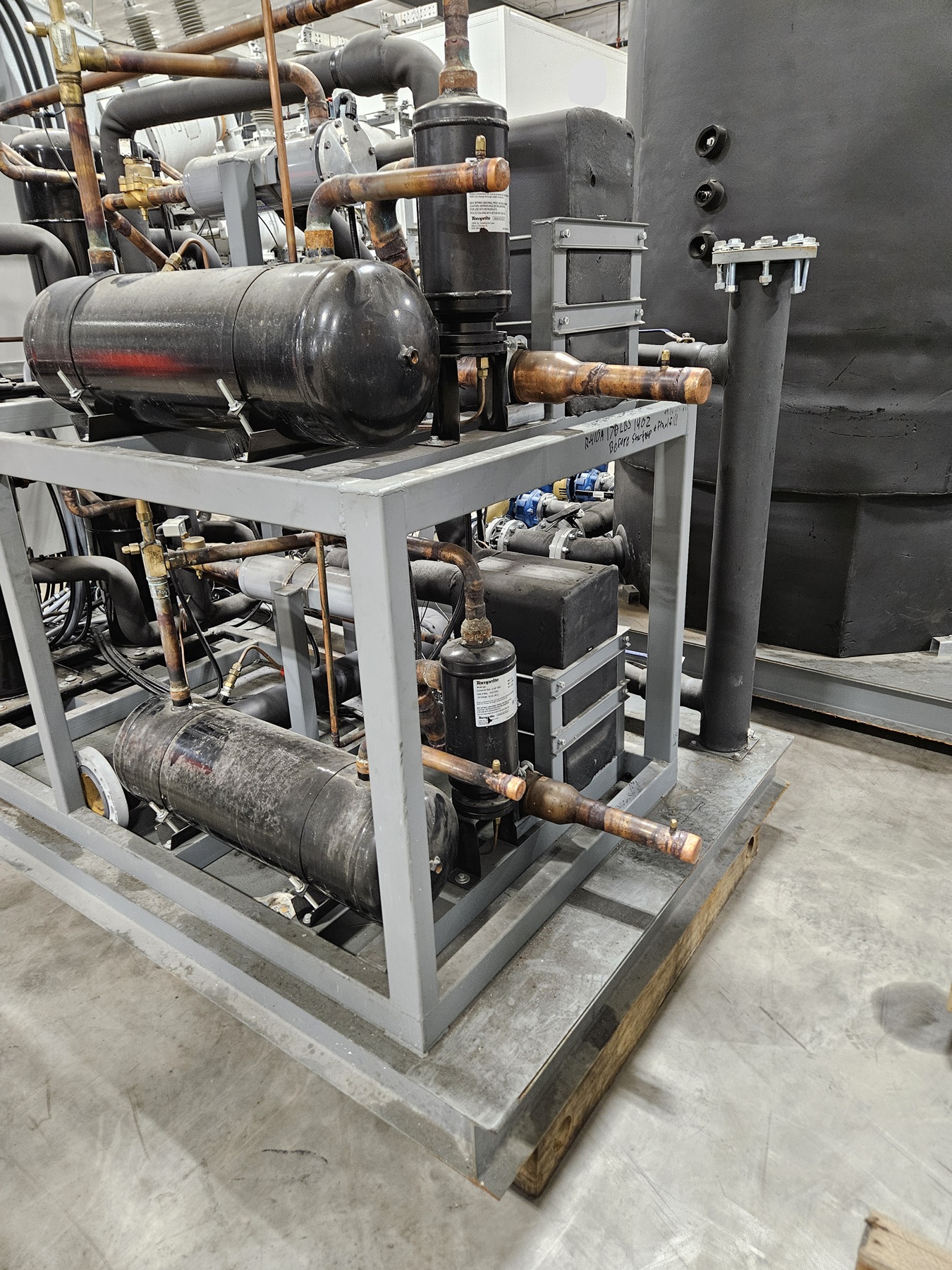

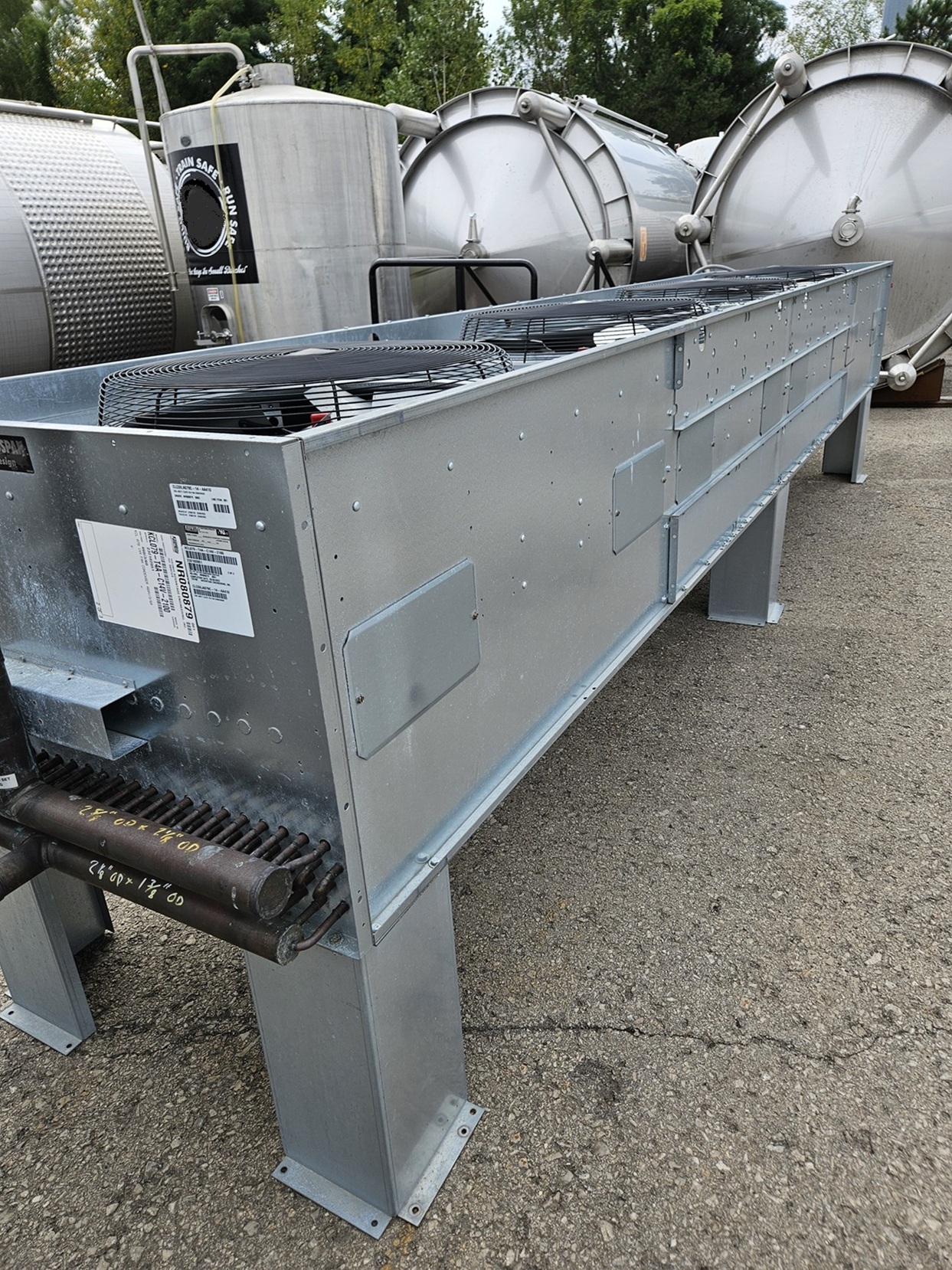

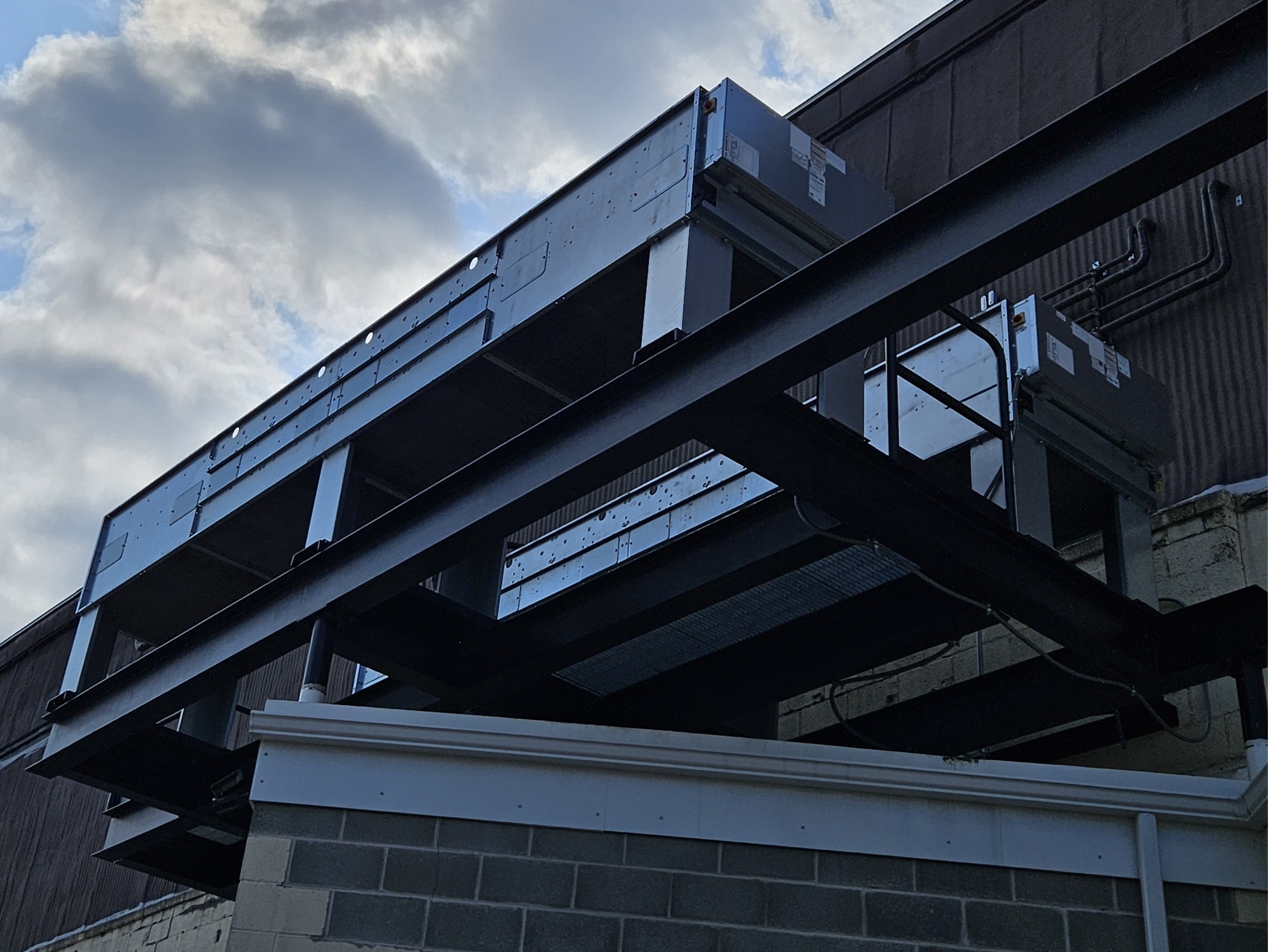

Used 93-Ton Air Cooled Advantage Titan Central Chiller with Remote Outdoor Condensers (2023) Model: TIP-100A-MZC-3P, 460/3/60 voltage Central water chillers are designed to circulate a fluid medium (typically water, or a water-glycol solution) through a process application for COOLING typically between 20°F to 80°F. This is rated: 93-Tons @ 50 Deg. F Included Features: 93 tons capacity, 240 GPM water, 50ºF leaving water & 95ºF ambient Two independent air-condensed R410A refrigeration circuits each with: Tandem scroll compressors Discharge check valve Qty 4: Compressor hour meters (see actual hours) Hot gas bypass capacity control High & low refrigerant pressure limit switches & gauges Liquid receiver, oil separator, filter dryer, sight glass with moisture indicator, liquid line solenoid valve & thermal expansion valve Brazed plate evaporator with stainless steel plates & copper brazing material Inlet basket strainer with isolation valves 30% PG recommended Qty 2: KeepRite Remote outdoor air-cooled condensers Model: KCL079-T4A-C14V-2100, 4-Fan, 460V/3Ph., R-410A, 650 PSIG Design Approximate dimensions: 60"H x 45"W x 240"L Each Approximate weight: 1,600 lbs. Each 2⅝" Refrigerant hot gas inlet connection 2⅛" Refrigerant liquid line outlet connection Approximate unit amps: 12.4 FLA Each Excluding indoor chiller 460/3/60 voltage: 12.4 FLA || 16 MCA || 20 MOP 5kA SCCR Low ambient head pressure control down to -20ºF Requires contractor installation of refrigerant piping and refrigerant charging (R410A). Integral 1,500 gallon insulated rotational molded LLD polyethylene tank Non-ferrous divided reservoir with sight glass Drain valve & overflow port o Electric automatic water makeup system Hinged tank lid PP-15, Scot 54F SF 2.5x2.5 Cast iron centrifugal process pump, 6.5" Impeller, 240 GPM @ 60 PSI @ 3455 RPM Baldor 15 HP 3455 RPM OPSB motor Variable speed drive for process pump Suction & discharge isolation valves Discharge pressure gauge EP-7.5, Scot 54F SF 2.5x2.5 Cast iron centrifugal evaporator pump, 5.25" Impeller, 240 GPM @ 30 PSI @ 3455 RPM Baldor 7½ HP 3455 RPM OPSB motor with prewired motor starter Suction & discharge isolation valves SP-15, Scot 54F SF 2.5x2.5 Cast iron centrifugal standby pump, 6.5" Impeller, 240 GPM @ 60 PSI @ 3455 RPM Baldor 15 HP 3455 RPM OPSB motor & 3-pump discharge manifold Individual pump motor disconnects Central control cabinet Multi-zone instrument (capable of controlling six individual zones) Modbus® RTU communications & refrigerant zone lead-lag Single point power entry distribution block, branch circuit protection, motor controls & control circuit transformer Pump lights & operators Audible - visual alarm Terminals for remote start – stop capability UL508A compliant enclosed electrical panel Non-fused disconnect switch General information (indoor section – excluding outdoor condensers) Approximate dimensions: 138"W x 138"L x 112"H 4" Flanged process connections o 1" FPT Water make-up connection 6" Fernco slip overflow connection 1½" FPT Drain connection with ball valve 2⅛" Hot gas outlet connection (each circuit) 1⅜" Liquid line inlet connection (each circuit) Approximate unit amps: 259 Amps Excludes remote outdoor condensers 460/3/60 voltage: 259 FLA || 324 MCA || 350 MOP 5kA SCCR Additional Information & Details: Total Hours: Compressor #1 Zone #1: 1036 Hours Compressor #1 Zone #2: 3300 Hours Compressor #2 Zone #1: 210 Hours Compressor #2 Zone #2: 453 Hours Titan Control Panel contains Operator Controls & MCZ Controllers: (1) Disconnect Switch (1) Emergency Stop Button (1) Master Start On/Off Switch, Running Light (Amber), Overload Trip Light (Red) (1) Standby Pump On/Off Switch, Running Light (Amber), Overload Trip Light (Red) (1) Process Pump On/Off Switch, Running Light (Amber), Overload Trip Light (Red) (1) MCZ Controller (Temperature Indication & Display, Setup Indication & Display, Zone Indication, Process Water Indication, Output Control, Refrigeration Status, Communication & Alarm Indication, Communications Port) (2) Digital Refrigerant Pressurestat Displays (Reset Trip, Set Up, Toggle Display, Set Down, Displays: Head Pressure & Suction Pressure) Note: For Zone 1 & Zone 2 (1) Xylem Process Pump VFD Control, Variable Frequency Drive, Aquavar AVA40150A0F0X0X1 (3) Eaton 30A On/Off Switches (on panel above the pumps) FOB: Webster, NY
