Used Rentech Boiler Systems Inc approximately 4500 HP package "D" type steam boiler

Used Rentech Boiler Systems Inc approximately 4500 HP package "D" type steam boiler

Location:Canton, NC

Description

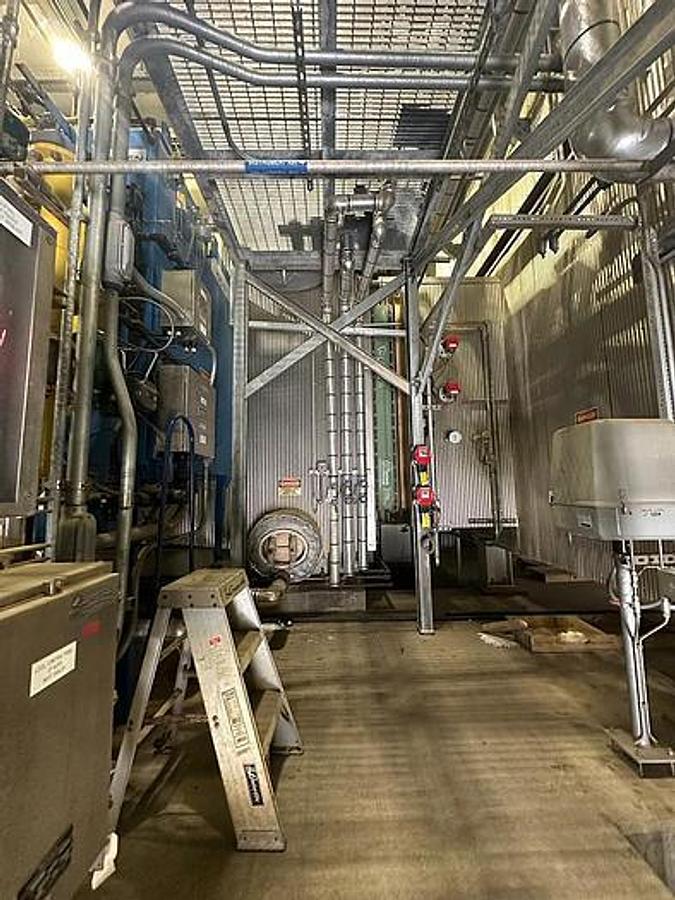

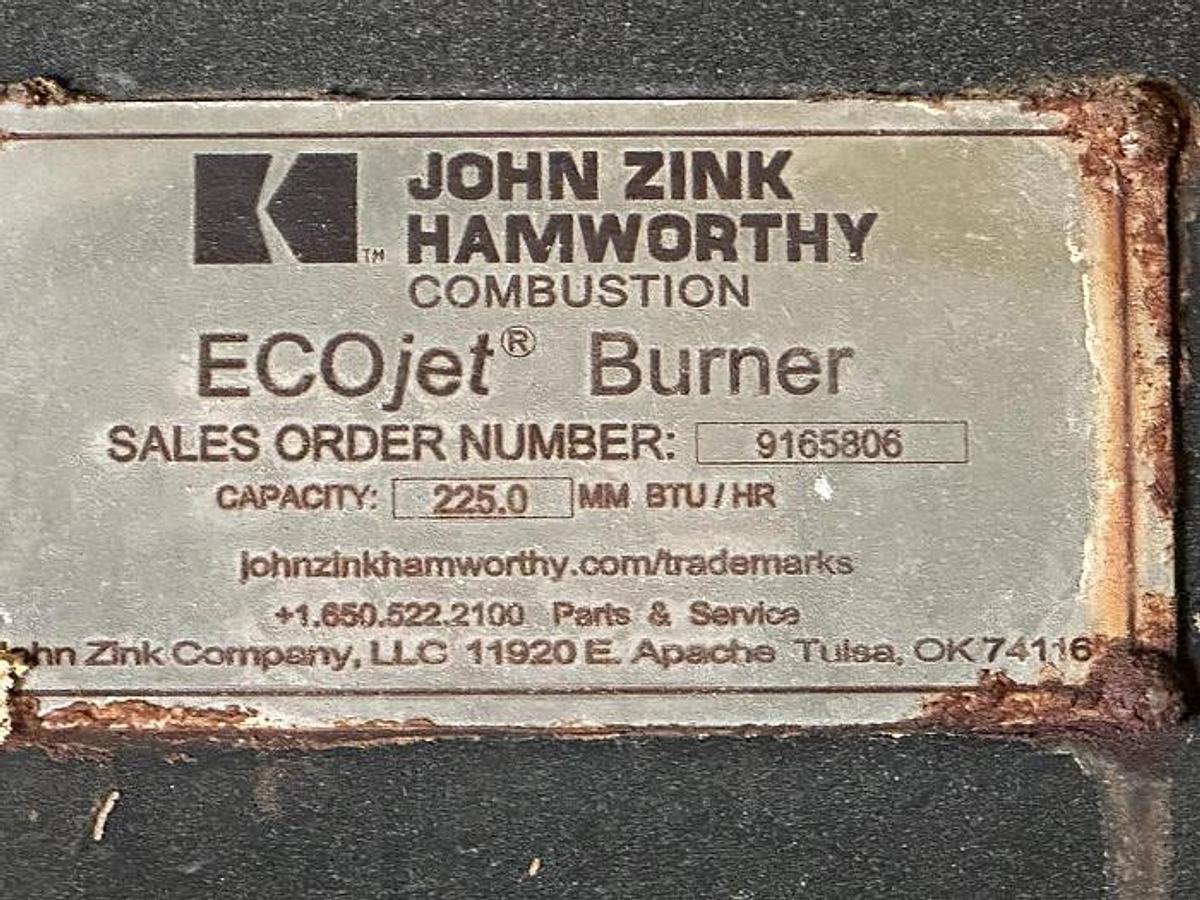

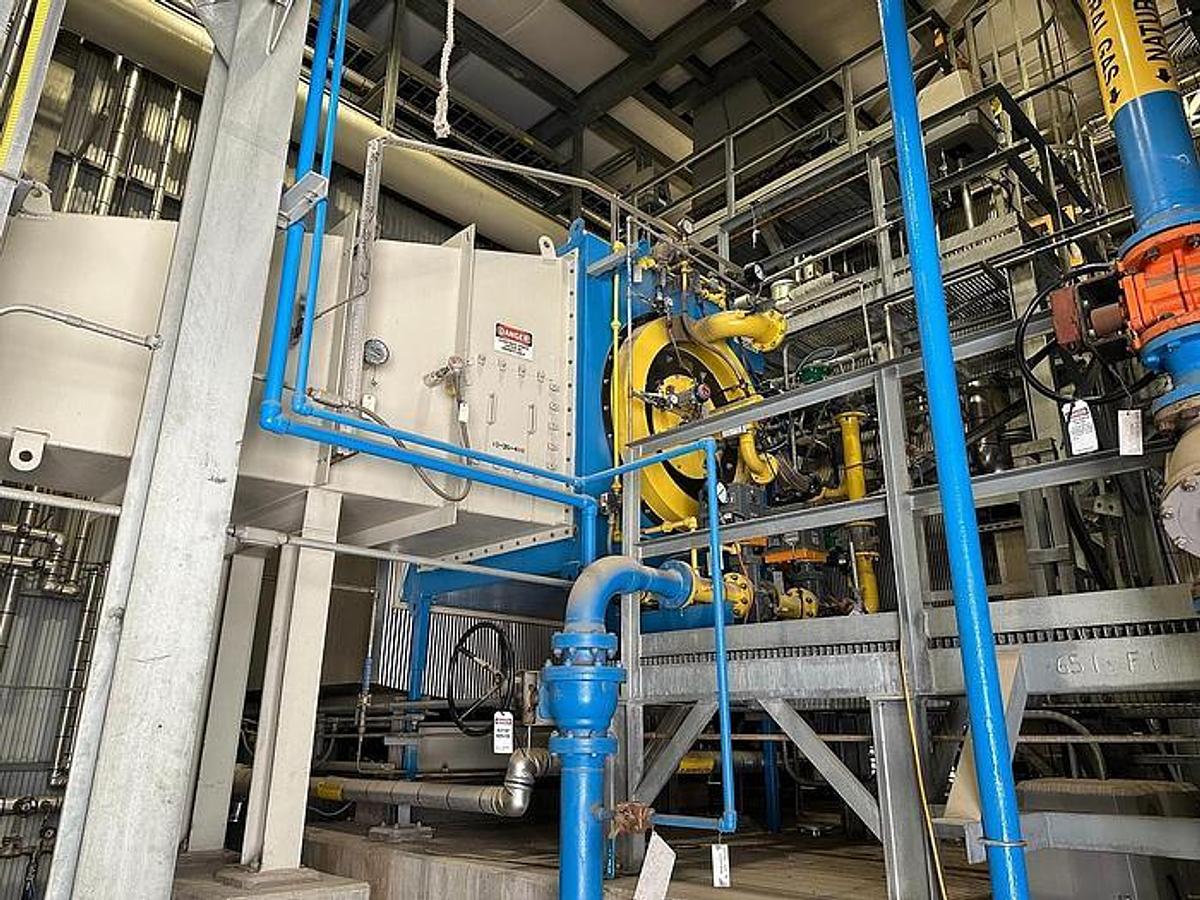

Used Rentech Boiler Systems Inc approximately 4500 HP package "D" type steam boiler. Unit rated for 160,000 Lbs/her of 400 PSI steam. Natural gas fired by John Zink Hamworthy Combustion ECOjet Burner, 225 MM BTU/HR. Furnace Dimensions: 35' long X 6.75' wide X 10' tall. Furnace operating pressure including FGR @ MCR 15.0 in WG (assumed). Combustion air temperature 16-85 degrees F. Flue gas Temperature 300 degrees F. High heat value 1,022 BTU/SCF. Pressure available 75 PSIG. Pressure required at JZHC/Coen interface 25 PSIG. Boiler has (1) burner, option1-0.050 lb/mmbtu, heat input 225 mmbtu/hr. Turndown 20:1. Excess air at MCR 15%. Recycle Flue gas rate at MCR 7%. Draft loss at MCR 9.25 in wg. "as is, where is" (2 Available) Canton, NC

Specifications

ManufacturerRentech
Year2015
ConditionUsed
Stock NumberCANT0125-0052
