Used Alloy Fabricators Inc. approximately 5600 gallon 304 stainless steel vertical mix tank

Used Alloy Fabricators Inc. approximately 5600 gallon 304 stainless steel vertical mix tank

Location:Moncks Corner, SC

orCall 252-378-4154

Description

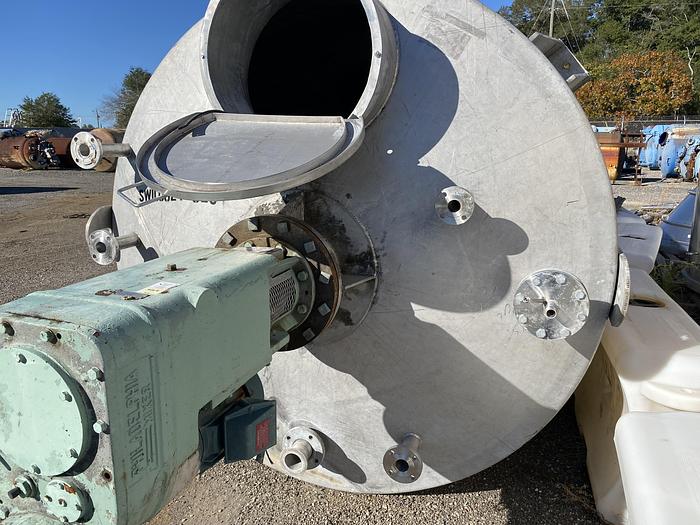

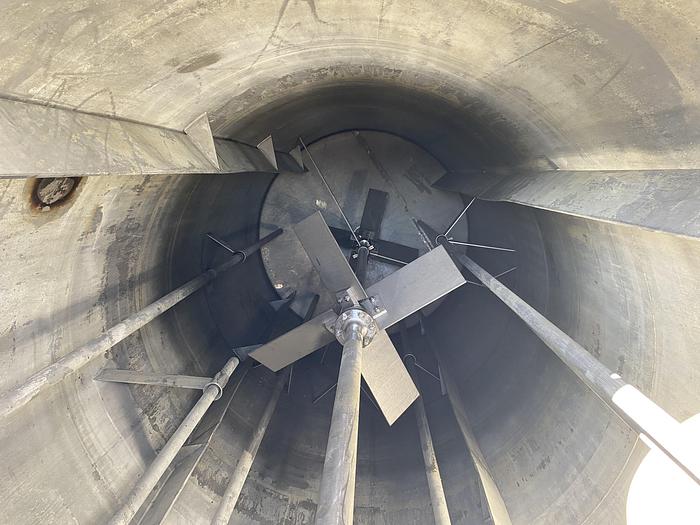

Used Alloy Fabricators Inc. approximately 5600 gallon 304 stainless steel vertical mix tank. 90" diameter X 17' high straight side. Internal rated ATMOS @ 200 F. Dished heads. Top fittings: 21" manway, (2) 1.5", (4) 2", (1) 3", and (1) 4". 3" center bottom drain. Has (4) internal baffles. Equipped with dual flight 4-blade agitator driven by Philadelphia model PTERVS-08 S/N 307573, Ratio 38.9-1. Rated 1750 RPM input, 45 RPM output. Powered by 5 HP 3/60/460 volt motor. Lug mounted. Built 1979. OAH 27'

Specifications

ManufacturerAlloy Fabricators Inc.
Year1979
ConditionUsed
Stock NumberSWIL0624-0023
