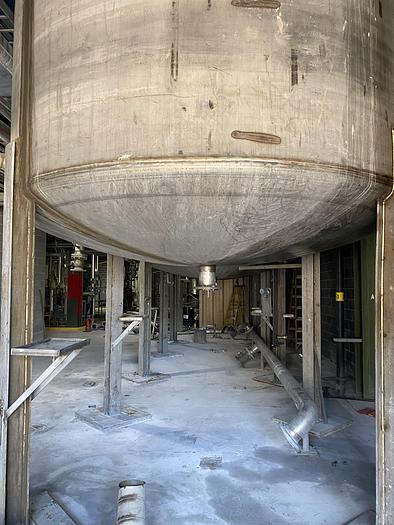

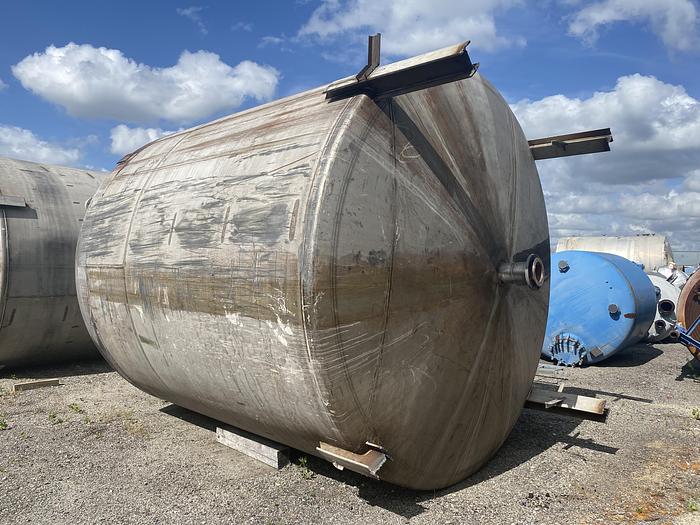

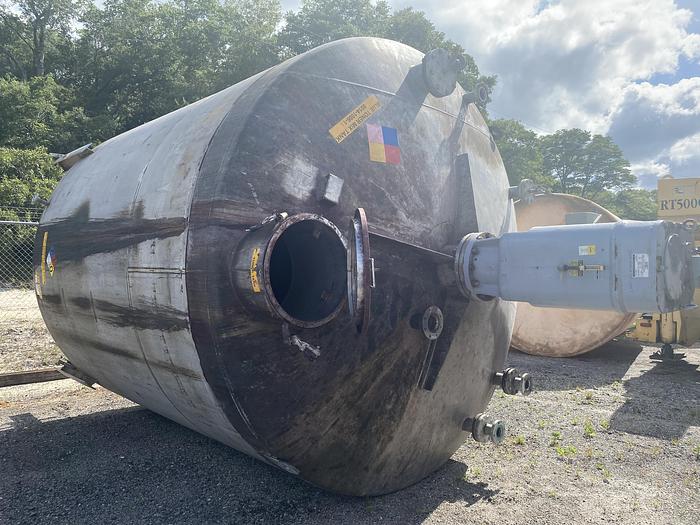

Used IPSCO approximately 9300 gallon 304 stainless steel vertical mix tank

Used IPSCO approximately 9300 gallon 304 stainless steel vertical mix tank

Moncks Corner, SC

orCall 252-378-4154

Description

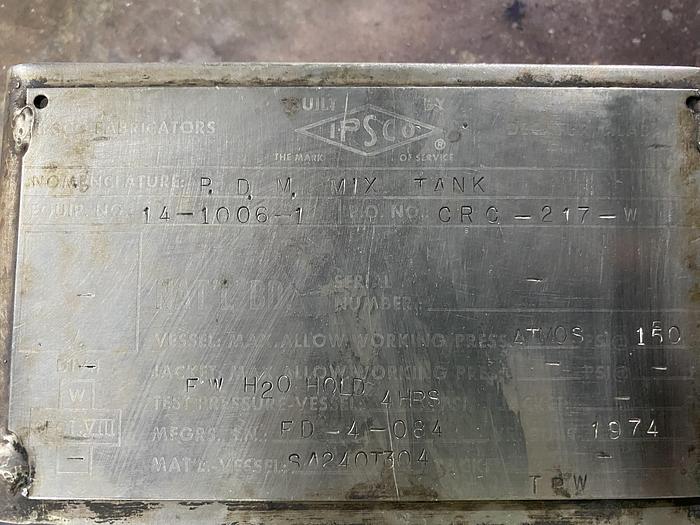

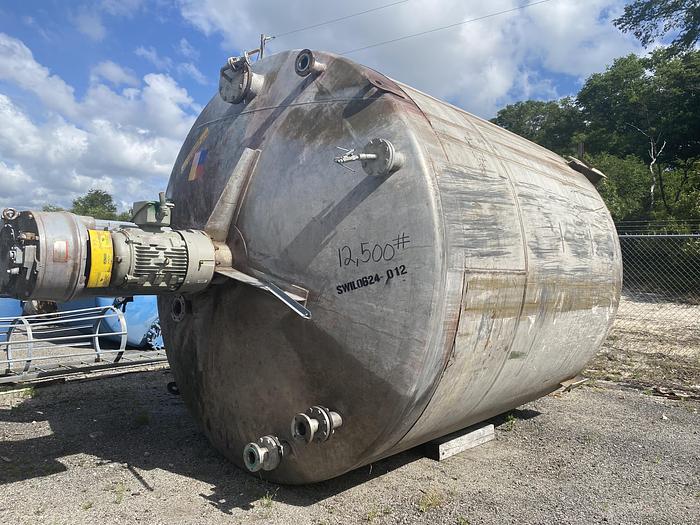

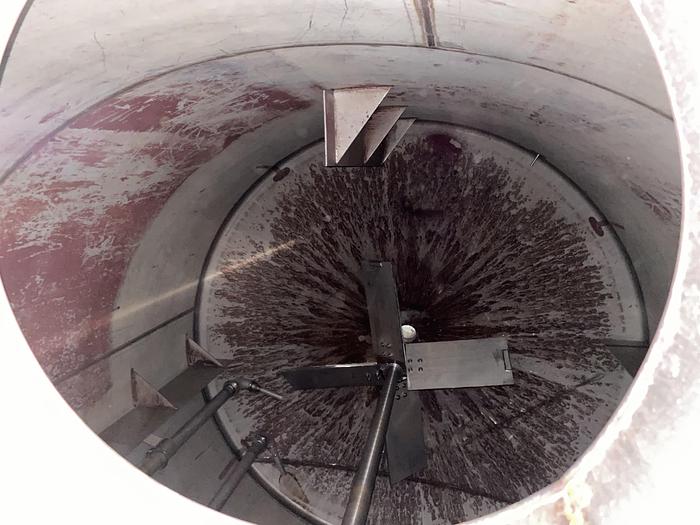

Used IPSCO approximately 9300 gallon 304 stainless steel vertical mix tank. 138" diameter X 144" high straight side. Internal rated ATMOS @ 150 F. S/N FD-4-084 Dished heads. Top fittings: 24" manway, (1) 3", (4) 4", and (1) 10". 6" center bottom drain. Equipped with (4) blade agitator driven by Philadelphia Type PTERSS-16 drive S/N 305651- I&R. Rated 1750 RPM input, 45 RPM output. Powered by 30HP 3/60/460 volt motor. Mounted on (4) stainless steel legs that give 64" clearance. NOTE: LEGS WILL WERE CUT FOR REMOVAL OF TANK.OAH. 25'

Specifications

ManufacturerIPSCO
Year1974
ConditionUsed
Stock NumberSWIL0624-0012
