Used Weir Warman 800 TYGSL Horizontal slurry pump

No longer available

Used Weir Warman 800 TYGSL Horizontal slurry pump

Kentucky

Description

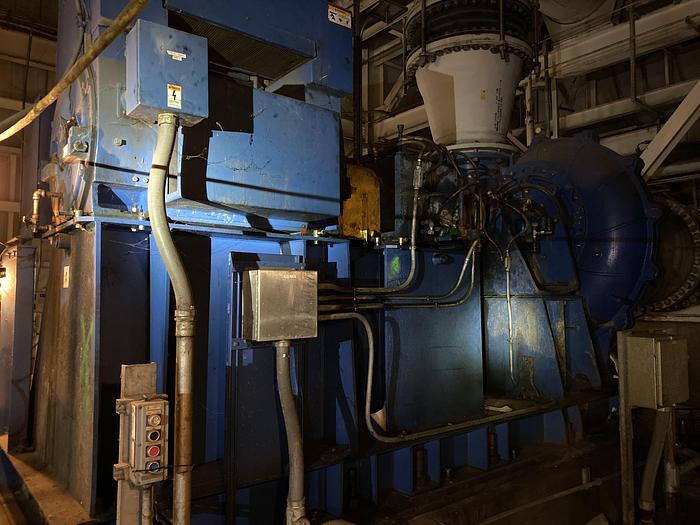

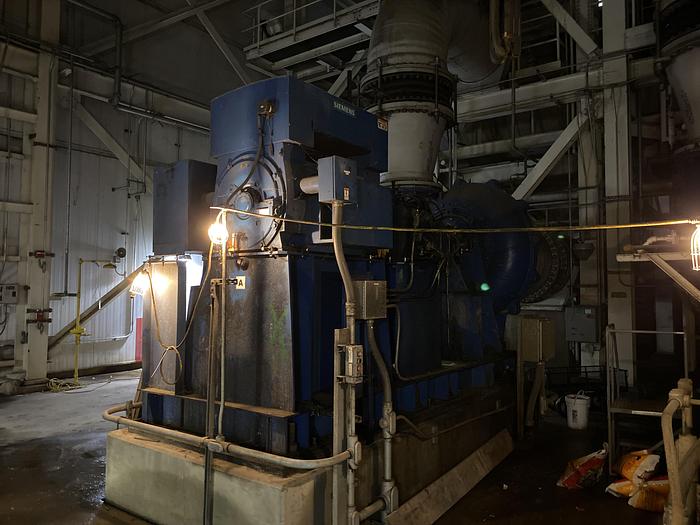

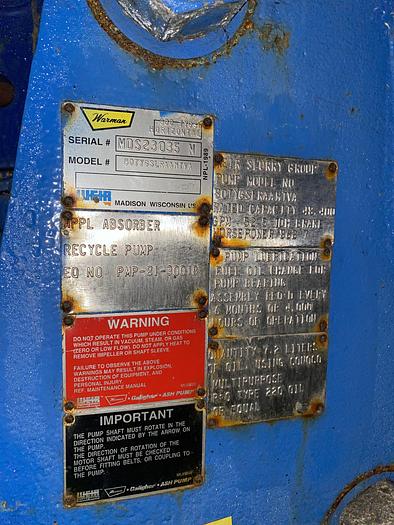

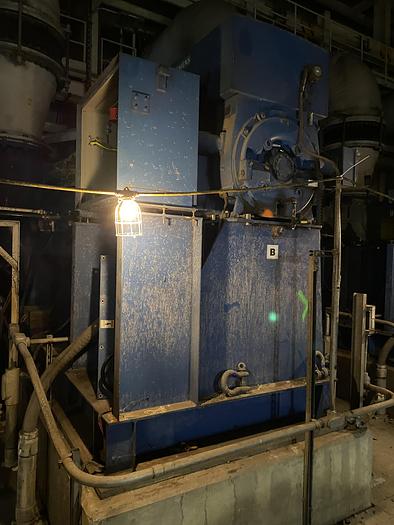

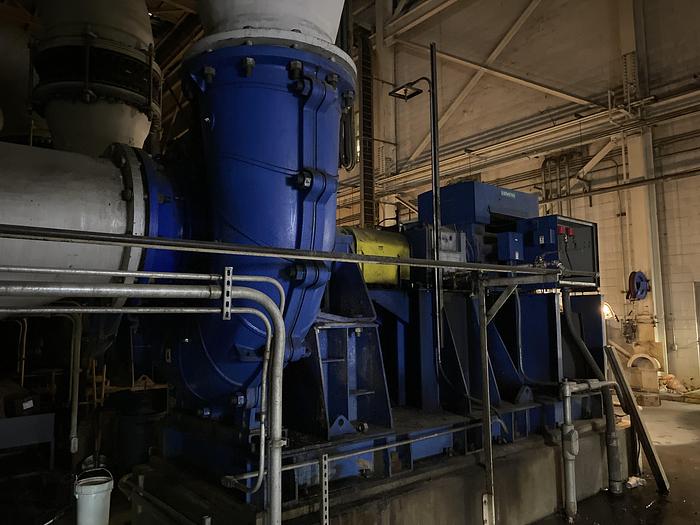

Used Weir Warman 800 TYGSL Horizontal slurry pump. Model 80TYGSLRAAMTVA. S/N MDS23035 M. Rated 48,400 GPM @ 52.5 TDH. BHP 862.7. Handled Gypsum Slurry, CL Conc. 2000 ppm, Pump Temp. 132.8 F, Sp. Gr. at pump 1.21, Vap. Press at pump 2.39 PSAI, Viscosity at Pump 10 cP, Corr. or Solid 30 wt%, pH 4-7. Pump speed 389 RPM, Max Head 86 Ft. 900mm suction, 800mm discharge, Impeller 41.2". Material of construction: Case ductile iron, rubber lined, impeller A49 Cr Iron, Shaft 410 Stainless steel, Shaft sleeve C55-Ferralium, Impeller ring Viton. Has single, flushless mechanical seal. FOB: Paradise, KY

Specifications

ManufacturerWeir Warman
Year2003
ConditionUsed
Stock NumberPARA0123-0008
