Unused K-S Avery Model 1200-225 LS/28-38/32 1200mm X 1200mm membrane filter press

Unused K-S Avery Model 1200-225 LS/28-38/32 1200mm X 1200mm membrane filter press

New Jersey

orCall 252-378-4154

Description

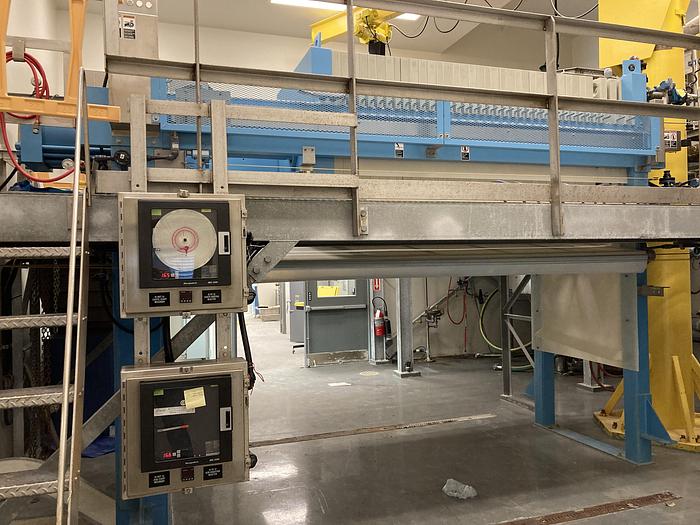

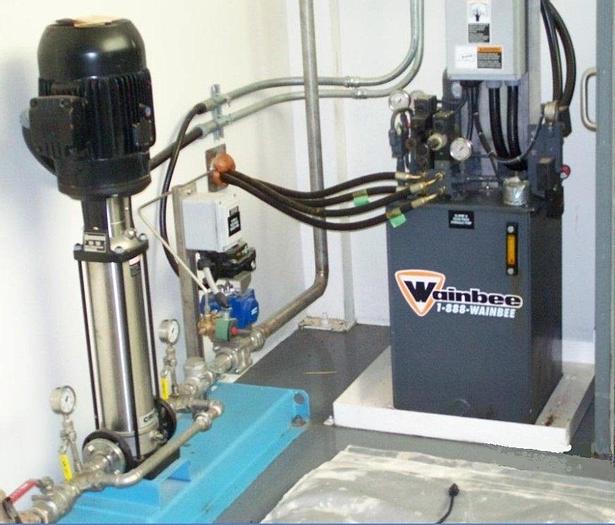

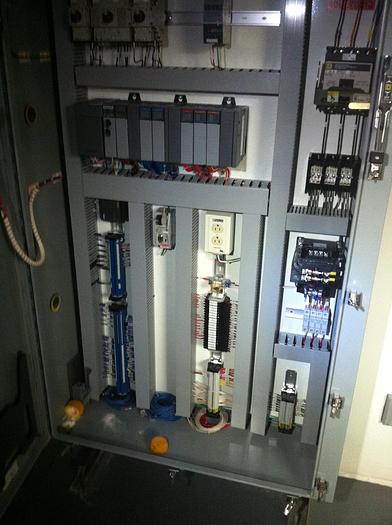

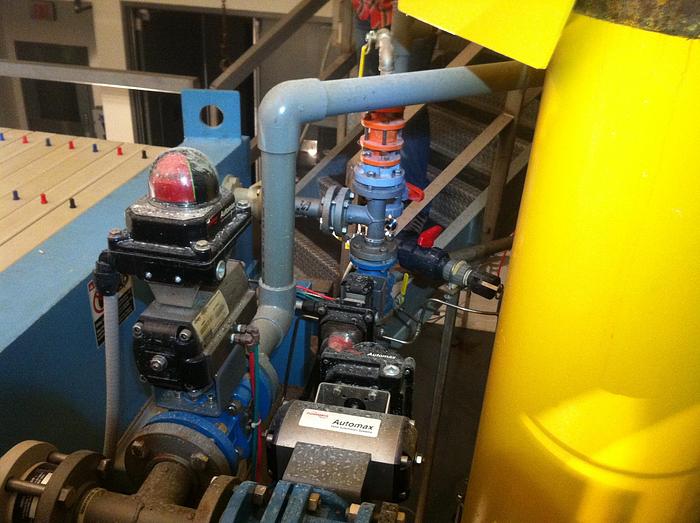

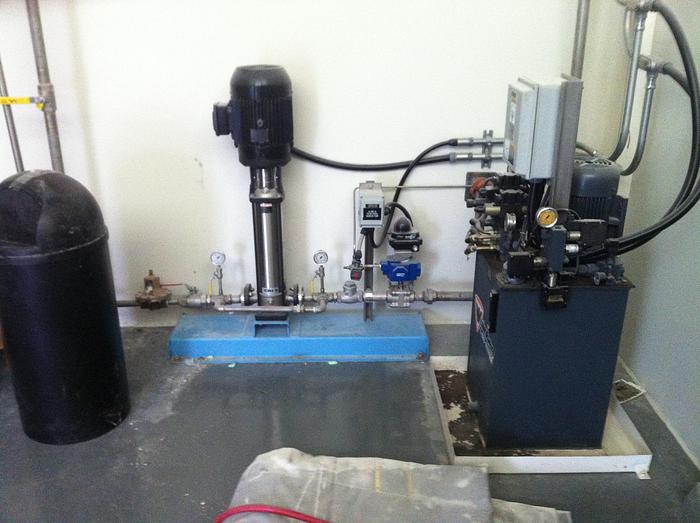

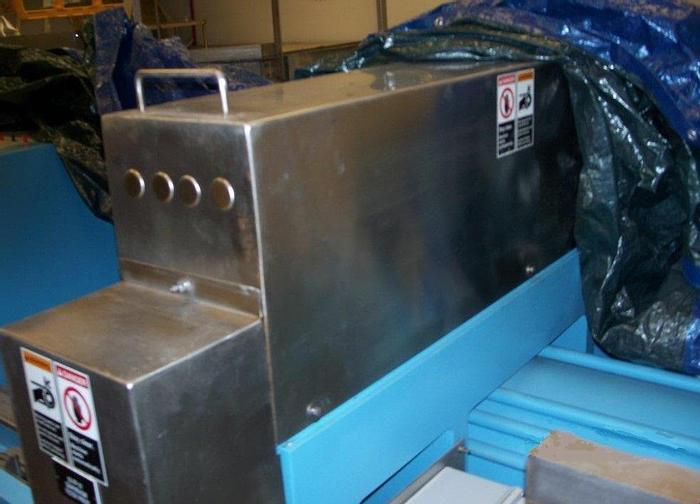

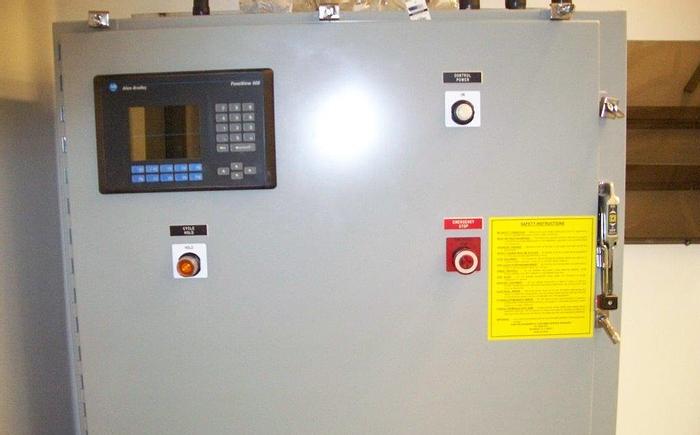

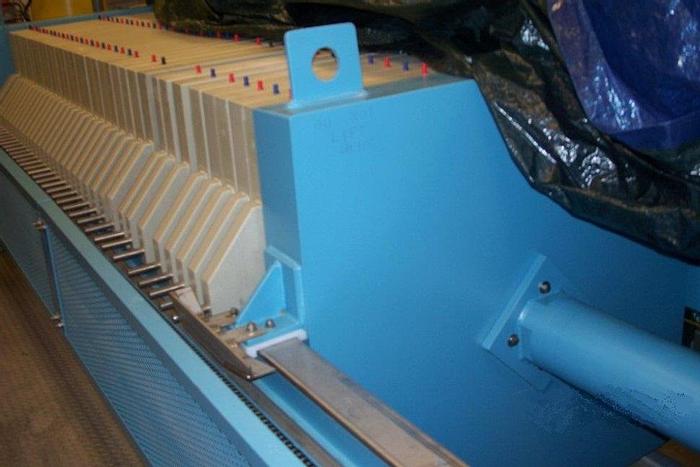

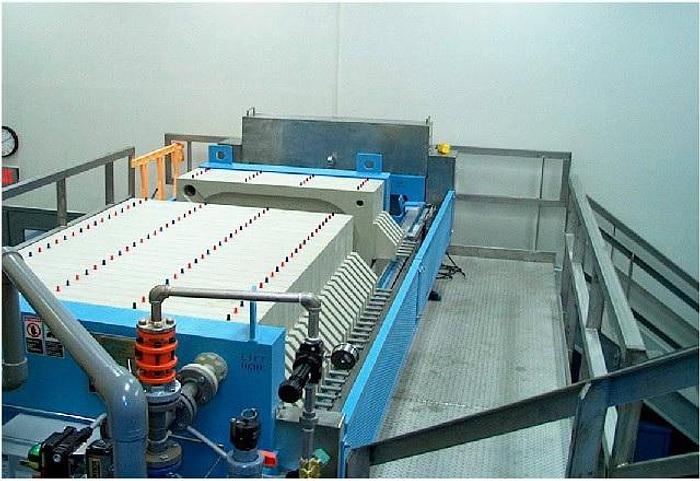

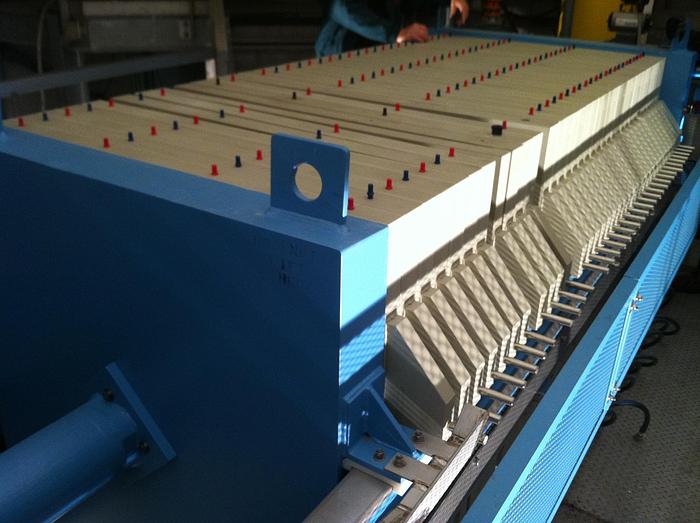

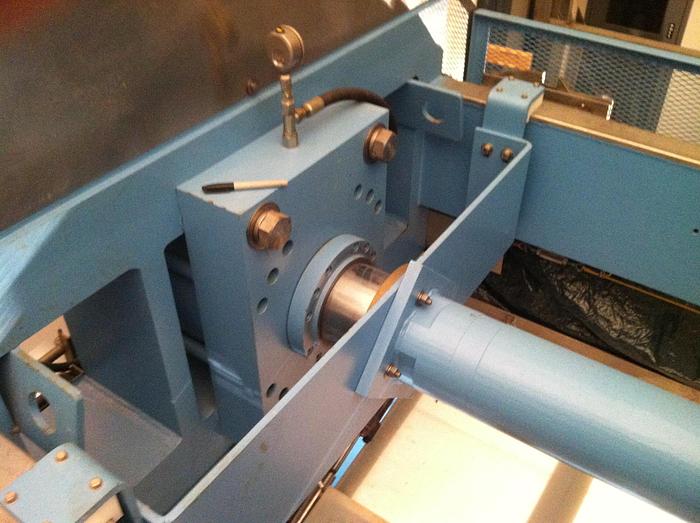

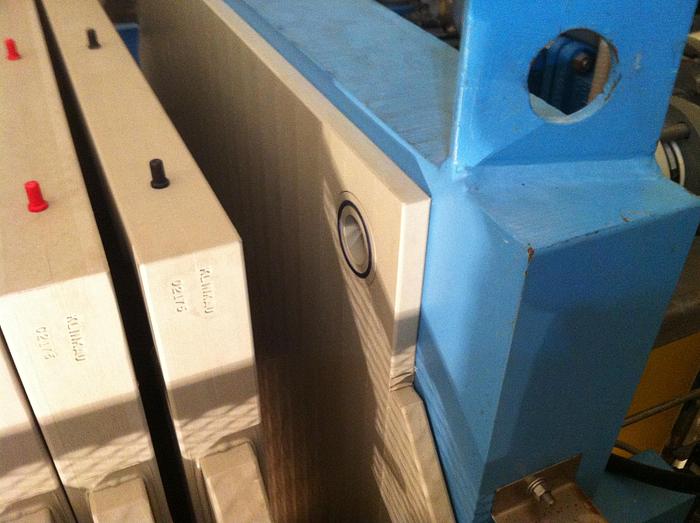

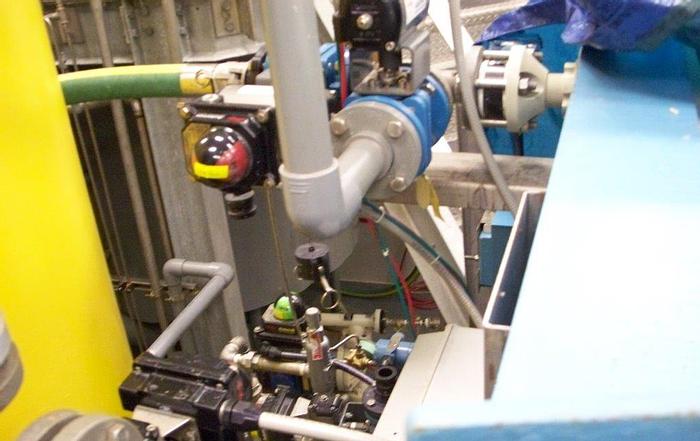

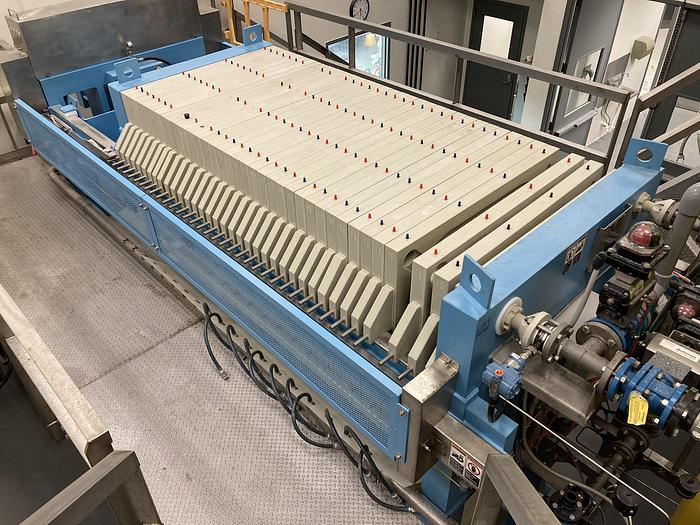

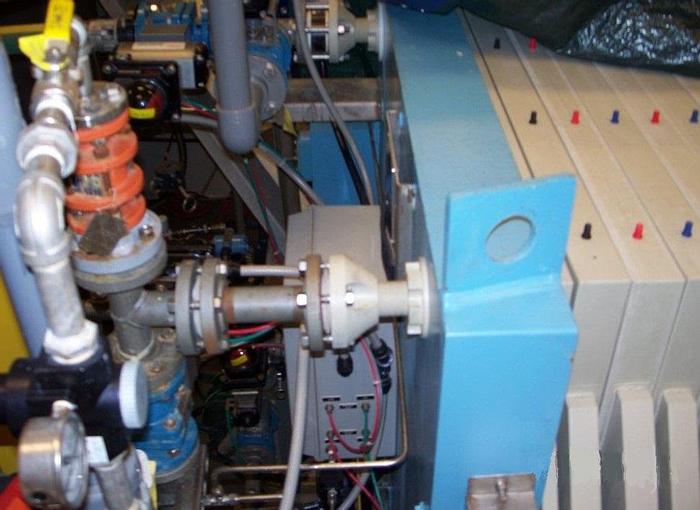

Unused Komline-Sanderson Model 1200-225 LS/28-38/32 1200mm X 1200mm poly membrane filter press. 17'-7" long X 5'-8" wide. Cake capacity is 34.8 cu. ft. expandable to 47.2 cu. ft. Has (2) complete 28 chamber plate stacks. 1.25" cake thickness. Plates are corner feed. 100 PSI filtration pressure, 225 PSI squeeze pressure. #1 and #3 button porting. Maximum filtration area is 918 sq. ft. Has electric hydraulic system, automatic plate shifter, automatic drip trays, membrane plate water squeeze pump skid, automated process valves and instrumentation, and control panel with Allen-Bradly PLC & color graphic interface. Leg Centers 13'-3" X 4'-2". Weight 24,700#. FOB: NJ

Specifications

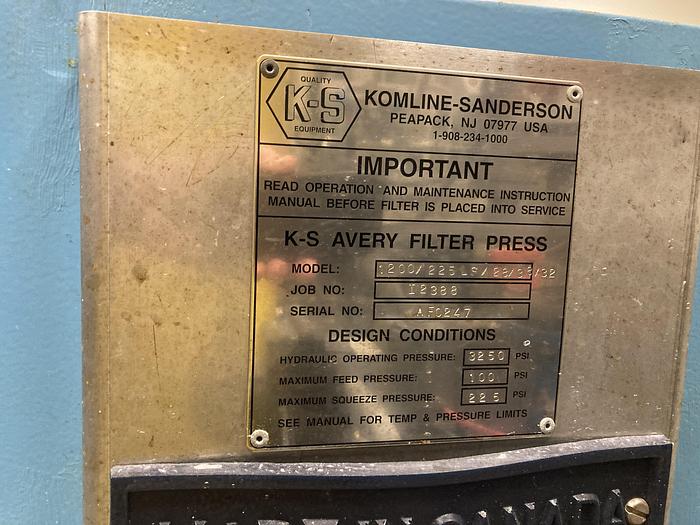

ManufacturerKomline Sanderson
Model1200-225 LS/28-38/32
Year2002
ConditionNew
Serial NumberAF0247
Stock NumberANJR0222-0001
