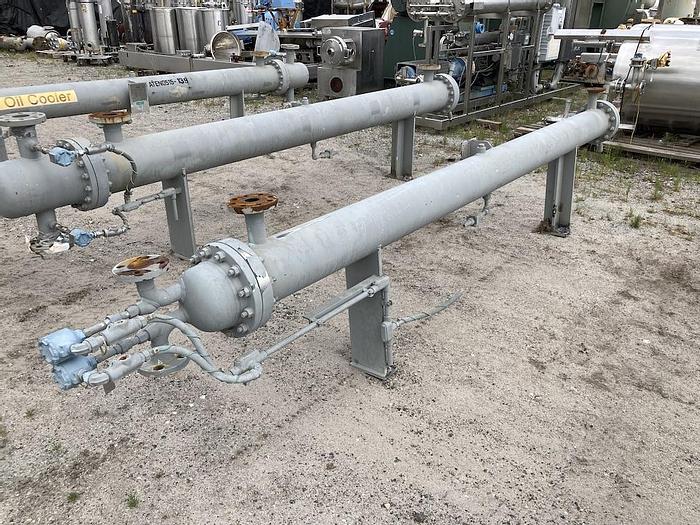

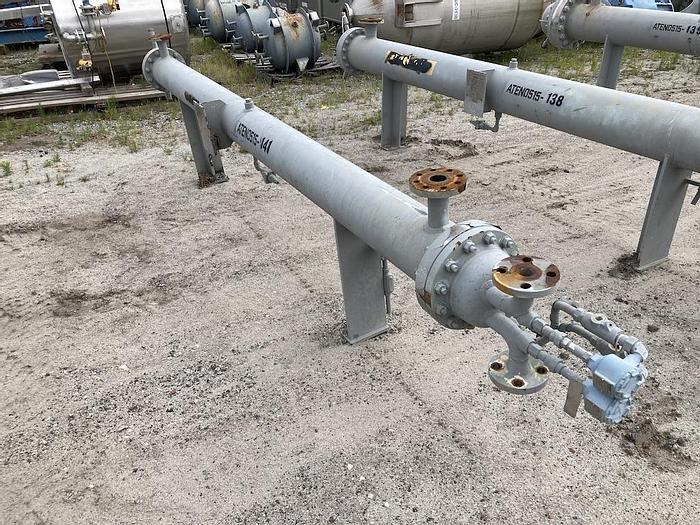

GEA FES Inc. approximately 120 square foot shell and tube heat exchanger

GEA FES Inc. approximately 120 square foot shell and tube heat exchanger

Wilmington, NC

orCall 252-378-4154

Description

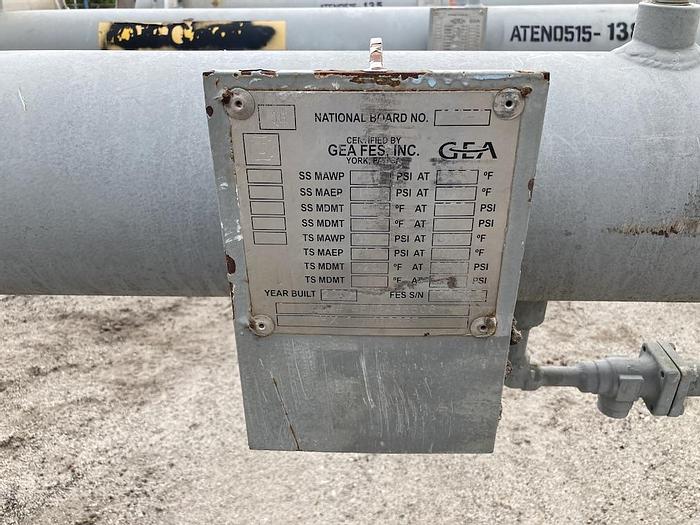

GEA FES Inc. approximately 120 square foot shell and tube heat exchanger. 8” diameter X 144” face to face length. National Board #17043, S/N: 100363. Carbon steel shell rated 450/FV at -20 to 500 degrees F. (60) 5/8” 316L tubes rated 350/FV at -20 to 500 degrees F. 316L tubesheets. Carbon steel epoxy coated heads. 2” service nozzles and (2) 3/4” vent/drain on service side. 1.5” process nozzles, (2) 2” vent/drain, and (2) 3/4” instrument inlets on the process side. Mounted on legs. Built 2010. FOB: Wilmington, NC

Specifications

ManufacturerGEA FES Inc.
Year2010
ConditionUsed
Serial Number100363
Stock NumberATEN0122-0141
