GEA FES Inc. approximately 230 square foot shell and tube heat exchanger

GEA FES Inc. approximately 230 square foot shell and tube heat exchanger

Wilmington, NC

orCall 252-378-4154

Description

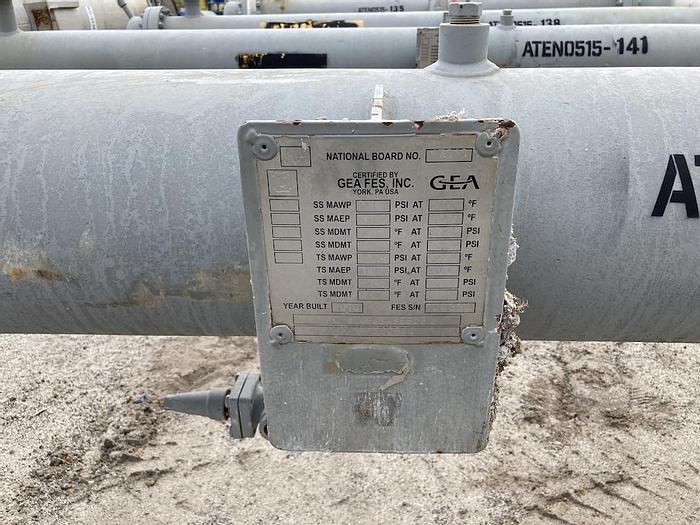

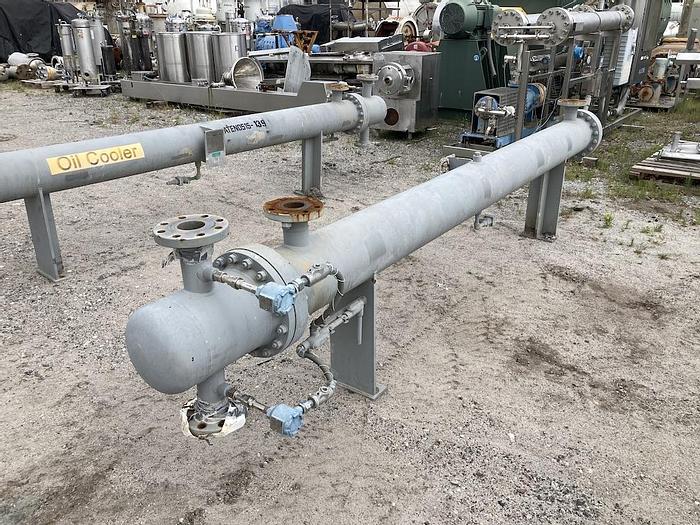

GEA FES Inc. approximately 230 square foot shell and tube heat exchanger. 10” diameter X 144” face to face length. National Board #17010, S/N: 100330. Carbon steel shell rated 450/FV at -20 to 500 degrees F. (118) 5/8” 316L tubes rated 350/FV at -20 to 500 degrees F. 316L tubesheets. Carbon steel epoxy coated heads. 3” service nozzles and (2) 3/4” vent/drain on service side. 3” process nozzles, (2) 1” vent/drain, and (2) 1/2” instrument inlets on the process side. Mounted on legs. Built 2010. FOB: Wilmington, NC

Specifications

ManufacturerGEA FES Inc.
Year2010
ConditionUsed
Serial Number100330
Stock NumberATEN0122-0140
