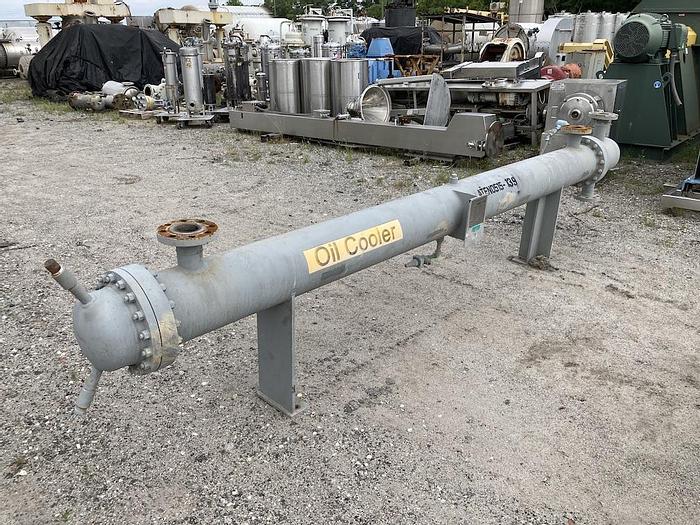

GEA FES Inc. approximately 230 square foot shell and tube heat exchanger
No longer available
GEA FES Inc. approximately 230 square foot shell and tube heat exchanger
Wilmington, NC
Description

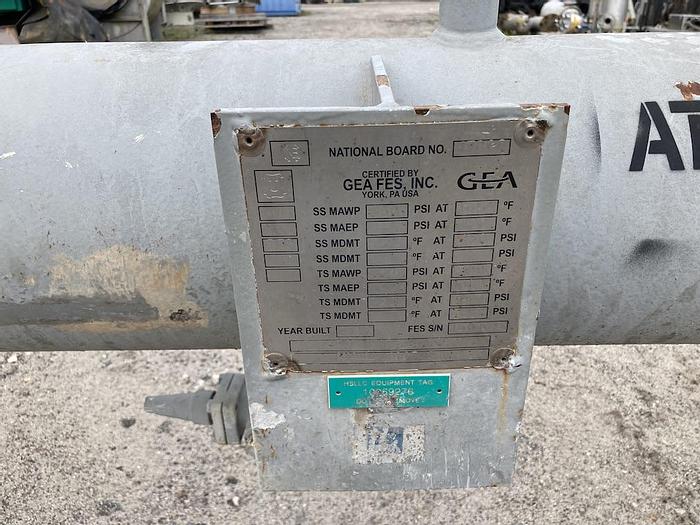

GEA FES Inc. approximately 230 square foot shell and tube heat exchanger. 10” diameter X 144” face to face length. National Board #17009, S/N: 100329. Carbon steel shell rated 450/FV at -20 to 500 degrees F. (118) 5/8” 316L tubes rated 350/FV at -20 to 500 degrees F. 316L tubesheets. Carbon steel epoxy coated heads. 3” service nozzles and (2) 3/4” vent/drain on service side. 3” process nozzles, (2) 1” vent/drain, and (2) 1/2” instrument inlets on the process side. Mounted on legs. Built 2010. FOB: Wilmington, NC
Specifications
Manufacturer | GEA FES Inc. |
Year | 2010 |
Condition | Used |
Serial Number | 100329 |
Stock Number | ATEN0122-0139 |
