Used Chart Cooler Service Co. Inc Air Fin Cooler Model 1-HF54-1-7

Used Chart Cooler Service Co. Inc Air Fin Cooler Model 1-HF54-1-7

Wilmington, NC

orCall 252-378-4154

Description

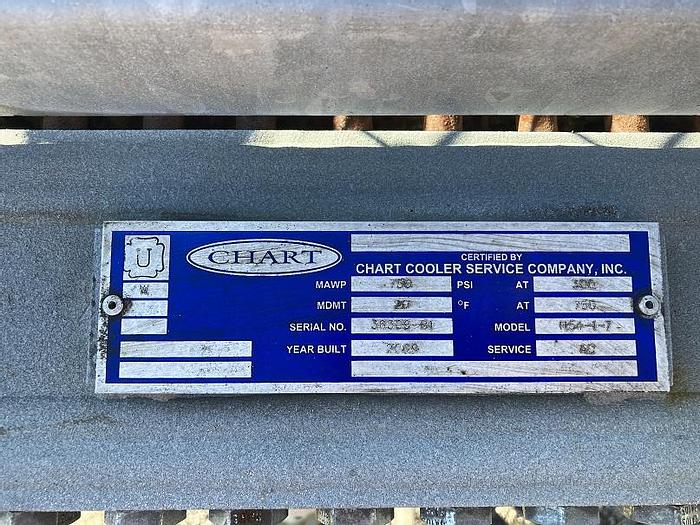

Used Chart Cooler Service Co. Inc Air Fin Cooler Model 1-HF54-1-7  S/N 36309-B1  .Tube bundle is 63" wide X 84" long.    (125) carbon steel 5/8" X 0.06" tubes with L-tension wrapped aluminum fins, with fin height of 0.4375", 3 rows, 3-passes giving bare sq. ft. of 142.59, extended sq. ft. of 2257.  Designed for 750 PSIG @ 20 to 300 degrees F.  Has 4" 600# inlet and outlet and 1" vent and drain.  Equipped with 7.5 HP 4.5' diameter Moore model 1000-16 SC fans.  4 blades each with 36.99 pitch with 28,668 ACFM/fan.  Output RPM of 675.  Motor is 7.5HP 3/60/460 volt.  Overall dimensions 93" long X 63 7/8" wide X 92 7/8" tall.  Weight 3200#.  Previously used in natural gas service.  Built 2009.  FOB: Wilmington, NC

Specifications

ManufacturerChart Cooler Service Co.
Model1-HF54-1-7
Year2009
ConditionUsed
Serial Number36309-B1
Stock NumberAWIL0421-0004
