Used Chart Cooler Service Co. Inc. Air Fin Cooler Model 1-HF120-2-40

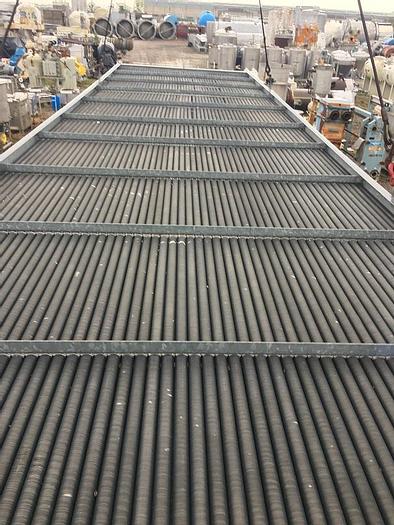

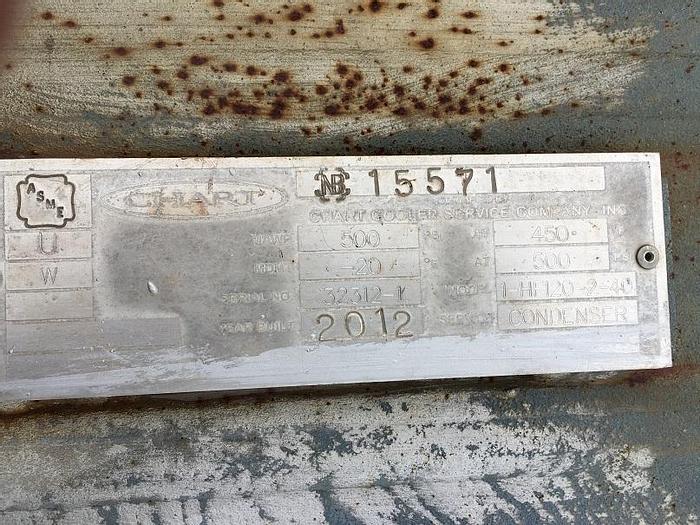

Used Chart Cooler Service Co. Inc Air Fin Cooler Model 1-HF120-2-40  S/N 32312-1  .Tube bundle is 11' wide X 40' long.  National Board # 15571.  (222) carbon steel 1" X 0.06" tubes with L-tension wrapped aluminum fins, with fin height of 0.625", 4 rows, 3-passes giving bare sq. ft. of 2313, extended sq. ft. of 49256.  Designed for 500 PSIG @ -20 to 450 degrees F.  Has 8" 300# inlet and outlet and 1" vent and drain.  Equipped with (2) 25 HP 10' diameter Moore model 10000-30 EC VT fans.  5 blades each with 6.9 pitch with 28,200 ACFM/fan.  Output RPM of 323.2.  Motors are 25HP 3/60/460 volt.  Overall dimensions 42' long X 11' wide X 11'-8" tall.  Weight 27,000#.  Previously used in natural gas service.  Built 2012.  FOB: Wilmington, NC
