ExceleTech Inc. approximately 2500 gallon 304 stainless steel vertical pressure tank

ExceleTech Inc. approximately 2500 gallon 304 stainless steel vertical pressure tank

Wilmington, NC

orCall 252-378-4154

Description

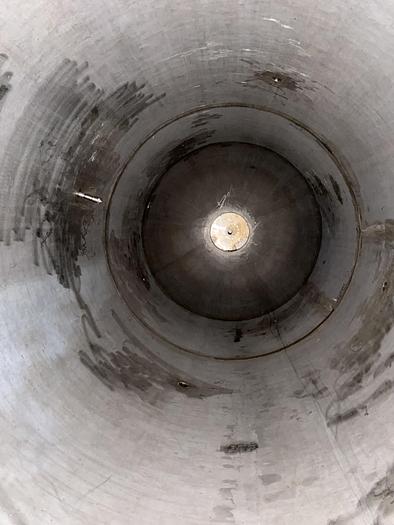

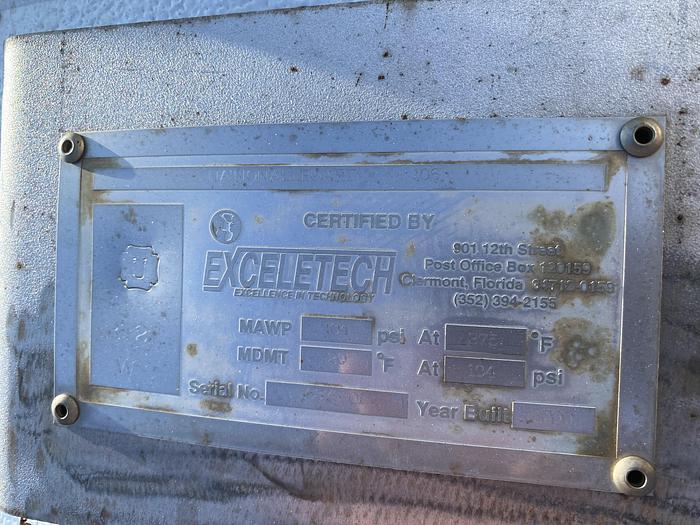

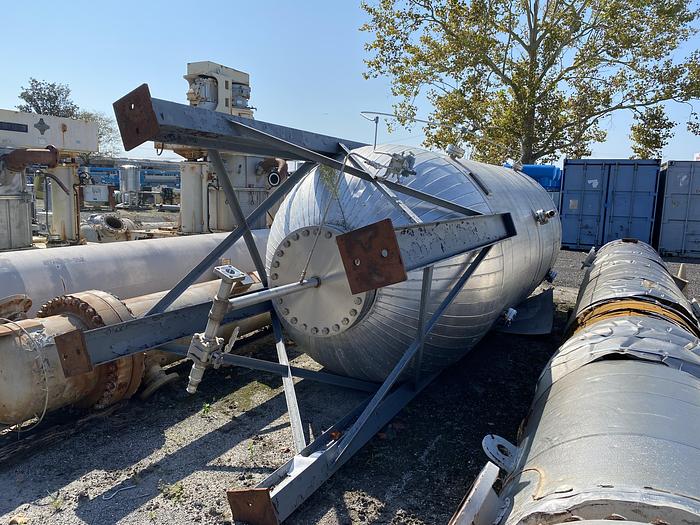

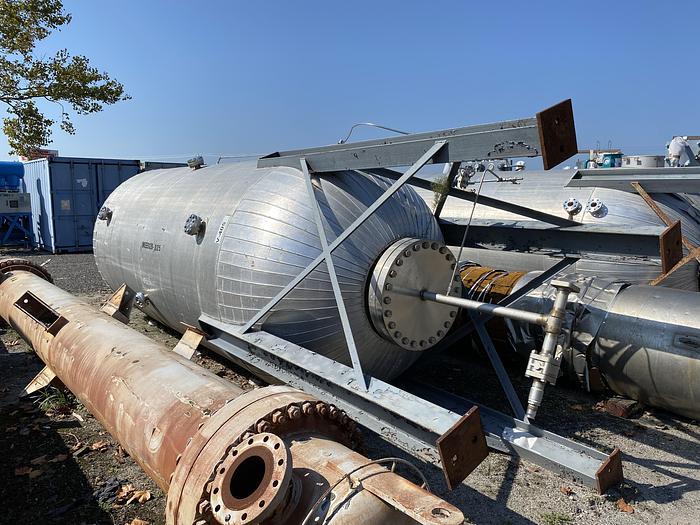

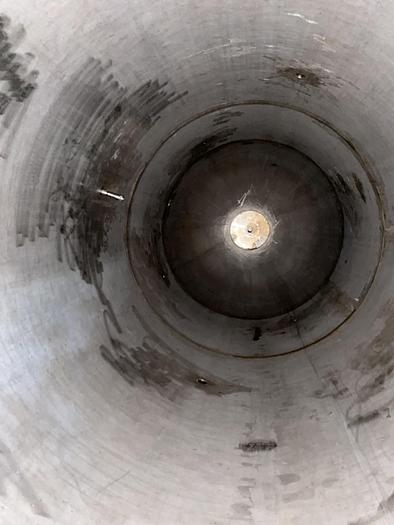

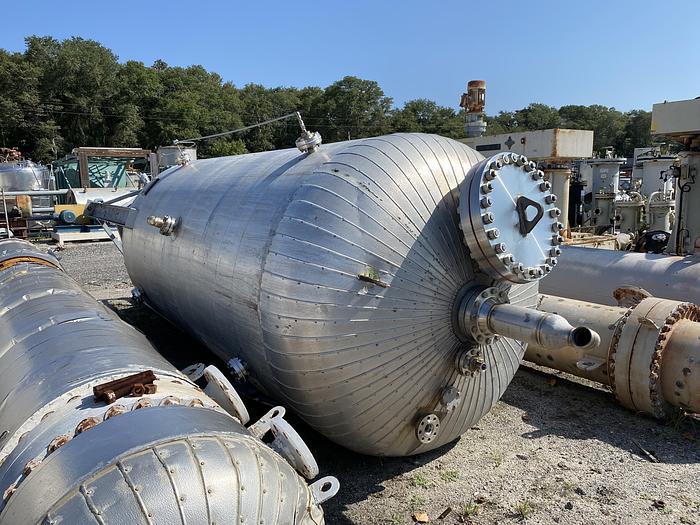

Used ExceleTech Inc. approximately 2500 gallon 304 stainless steel vertical pressure tank.  6' diameter X 12' high straight side. Internal rated 104 PSI @ 375 F.  Welded hemispherical heads.  NB# 106, S/N 6376-01.  Shell Thickness 0.625", bottom head 0.500", Top head 0.625".  Top fittings: 18" manway, (1) 1", (2) 2",and (1) 6" agitator nozzle.  20" center bottom drain.  (12) 2" side injection ports.  Weight approximately 16,500#.  Mounted on (4) carbon steel legs.  Insulated and wrapped with sheathing.  Built 2000. FOB: Wilmington, NC

Specifications

ManufacturerExceleTech Inc.
Year2000
ConditionUsed
Serial Number6376-01
Stock NumberOKEE0120-0025
