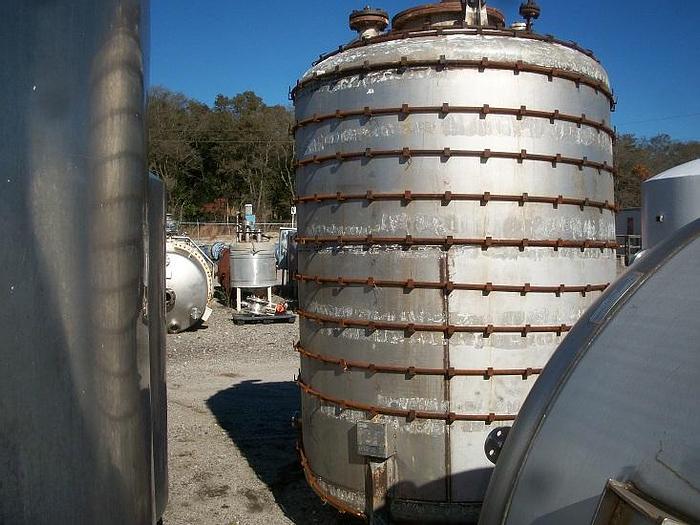

Circleville Metal Works Inc. approximately 1500 gallon 316 stainless steel vertical tank

Circleville Metal Works Inc. approximately 1500 gallon 316 stainless steel vertical tank

Wilmington, NC

orCall 252-378-4154

Description

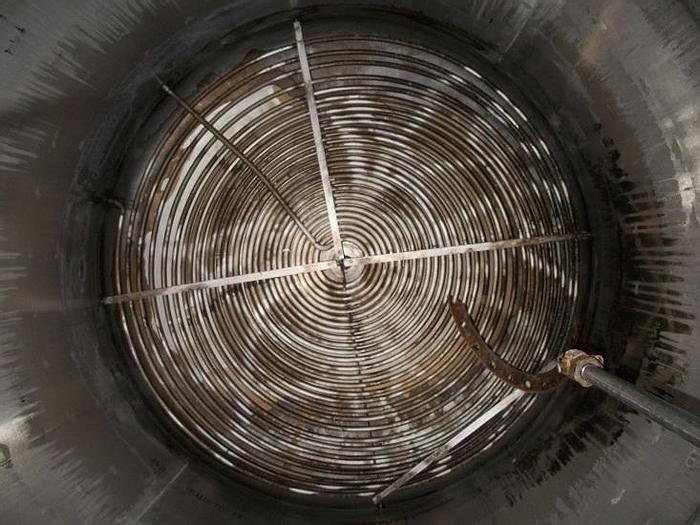

Used Circleville Metal Works, Inc. approximately 1500 gallon 316 stainless steel vertical tank.  72" diameter X 84" high straight side.  Internal rated ATM @ 450 degrees F.  External carbon steel 1/2" coil rated 300 PSI @ 700 degrees F.(One end the coil is missing the flange face).  Internal stainless steel 1/2" coil rated 300 PSI @ 700 degrees F.  Internal coil is 27 turns.  Top fittings: 21.5" with cover that has a 4" opening.  (1) 4", (1) 6", (1) 1", and (1) 1 1/2".  2" side top inlet, 1" side middle outlet (flange cut off). 1" side bottom outlet, 2" center bottom drain.  Mounted on angle iron legs.  FOB: Wilmington, NC

Specifications

ManufacturerCircleville Metal Works Inc.
ConditionUsed
Stock NumberAWIL0614-0021
