Unused Bendel approximately 1,200 gallon vertical 304 Stainless Steel quench tank

Unused Bendel approximately 1,200 gallon vertical 304 Stainless Steel quench tank

Wilmington, NC

orCall 252-378-4154

Description

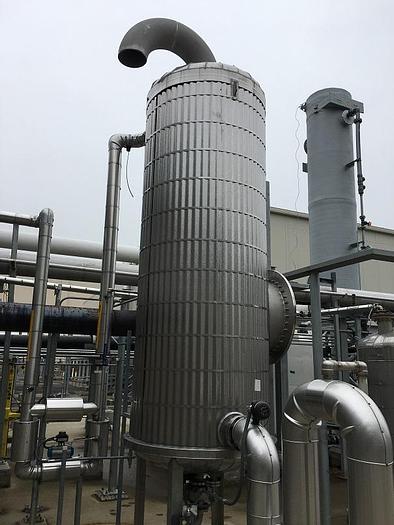

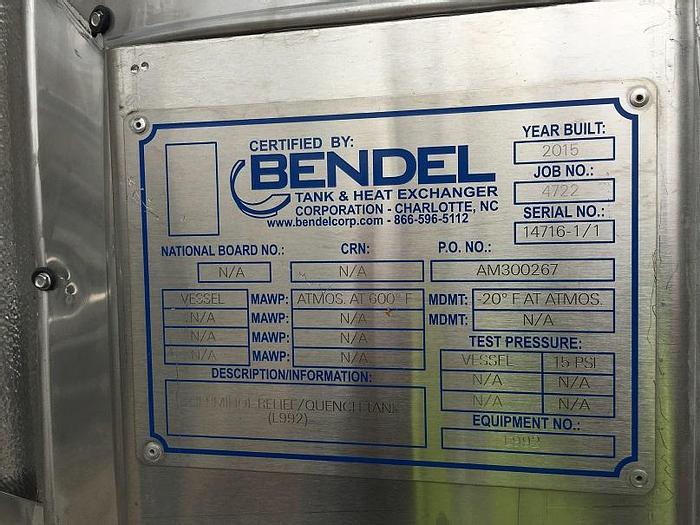

UNUSED Bendel approximately 1,200 gallon vertical 304 Stainless Steel quench tank.  4' diameter X 12' high straight side.  Internal rated ATMOS @ -20 to 600 F. Welded dished heads. S/N 14716-1/1. Top Fittings:  12" "U" vent. 3" center bottom drain. (1) 4" side top inlet, (1) 6" side bottom outlet, (1) 12" side bottom inlet connected to downspout sparge tube. (1) 2" side bottom inlet for level switch, (1) 2" offset bottom outlet for temperature transmitter, and (1) 30" side bottom manway.  Tank is equipped with (8) center baffle clips, (2) center baffles (approx. 2" H X 36") and (2) outer baffles (approx. 2" H X 24" ID X 47.5" OD)  Shell and Head thickness 0.25".  Mounted on (4) angle iron legs giving 23" clearance from bottom outlet to floor. Insulated and covered with aluminum sheathing. Built 2015.  Weight 4500#.  FOB: Wilmington, NC

Specifications

ManufacturerBendel
Year2015
ConditionUsed
Stock NumberALEV0119-0013
