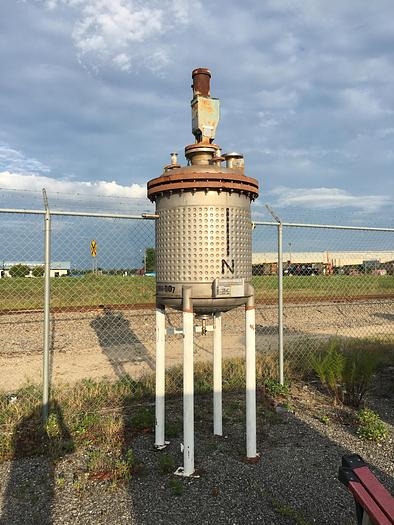

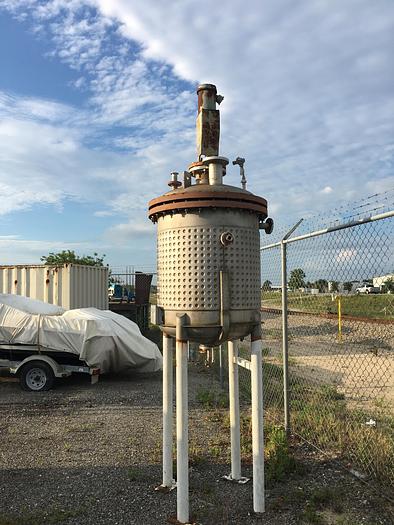

Mueller 200 gallon vertical jacketed stainless steel tank
![Used Mueller 200 gallon vertical jacketed stainless steel tank](https://i.machineryhost.com/8b313cbf30999888de32da1ec83ff503/59086f2f11f887c516daab26dd9a5dd0/large-used-mueller-200-gallon-vertical-jacketed-stainless-steel-tank.jpg)
Mueller 200 gallon vertical jacketed stainless steel tank
Location:Wilmington, NC
orCall 252-378-4154
Description

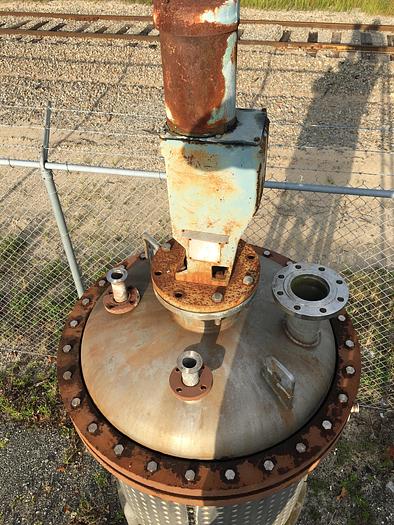

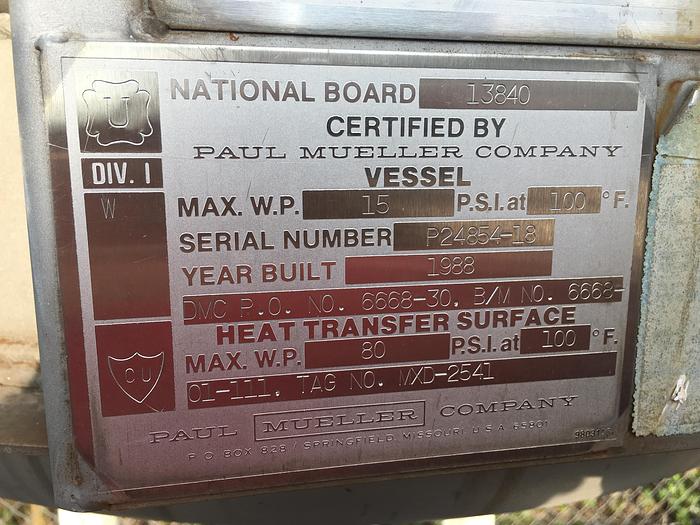

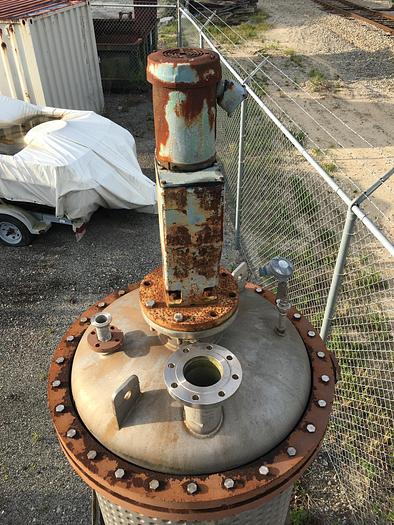

Used Mueller 200 gallon vertical jacketed stainless steel tank. 38"diameter X 48" high straight side. Internal rated 15 PSI @ 100 degrees F. Jacket rated 80 PSI @ 100 degrees F. NB# 13840. S/N P-24854-18. Built 1988. Top Fittings: (2) 1 1/2", (1) 4", and (1) 3/4". 3" center bottom drain. Equipped with Philadelphia Model PMV-01-PTS drive. Input RPM 1800, output RPM 68, ratio 25.6:1. Powered by a .5HP motor. Insulated and covered by aluminum sheathing. Mounted on Legs. FOB: Wilmington, NC
Specifications
Manufacturer | Mueller |
Year | 1988 |
Condition | Used |
Serial Number | P-24854-18 |
Stock Number | SWIL2050-0007 |
