Offenhauser Co. 14,455 gallon vertical 304 stainless steel scrubber

Offenhauser Co. 14,455 gallon vertical 304 stainless steel scrubber

Wilmington, NC

orCall 252-378-4154

Description

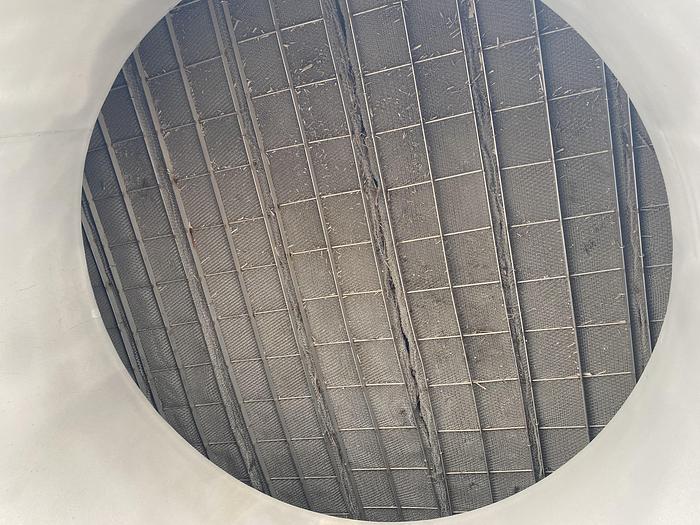

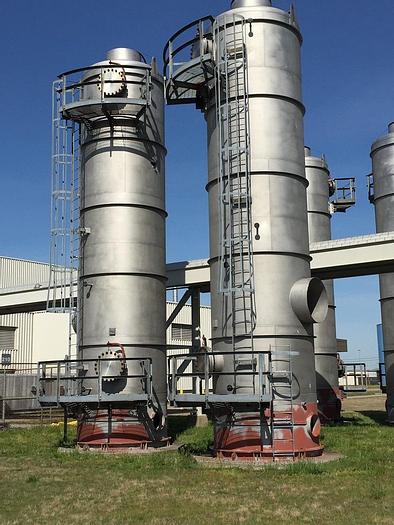

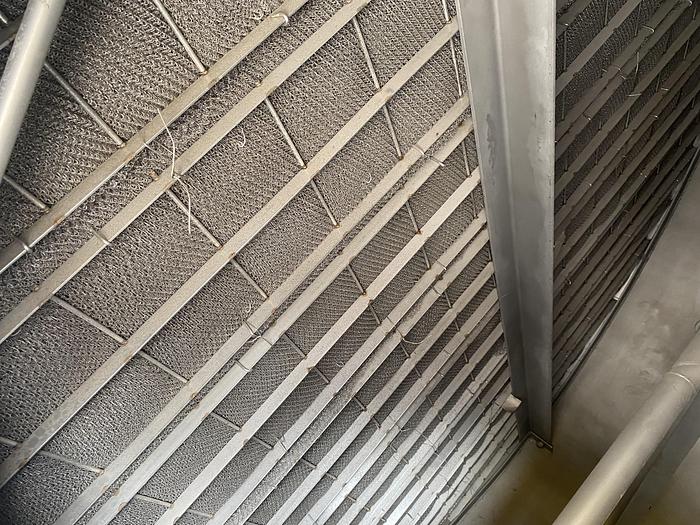

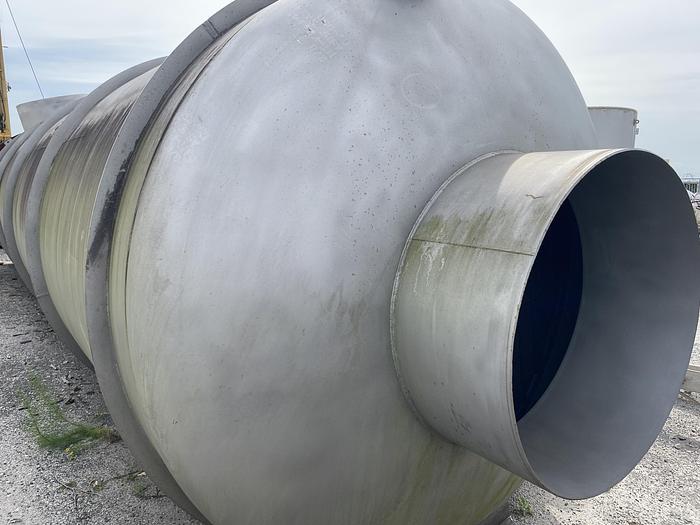

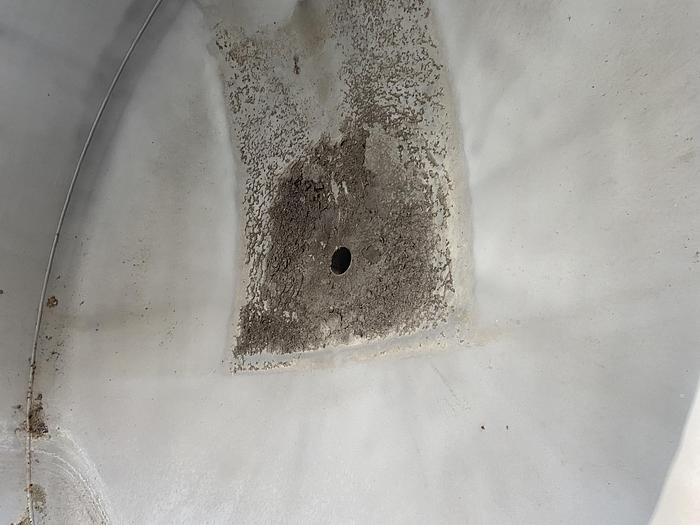

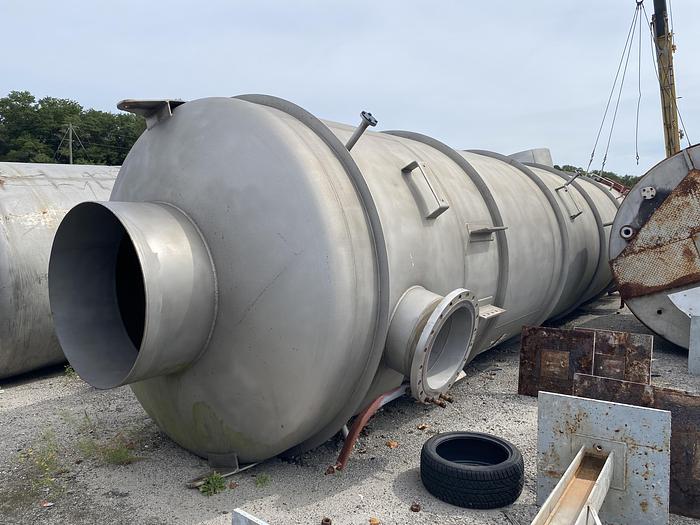

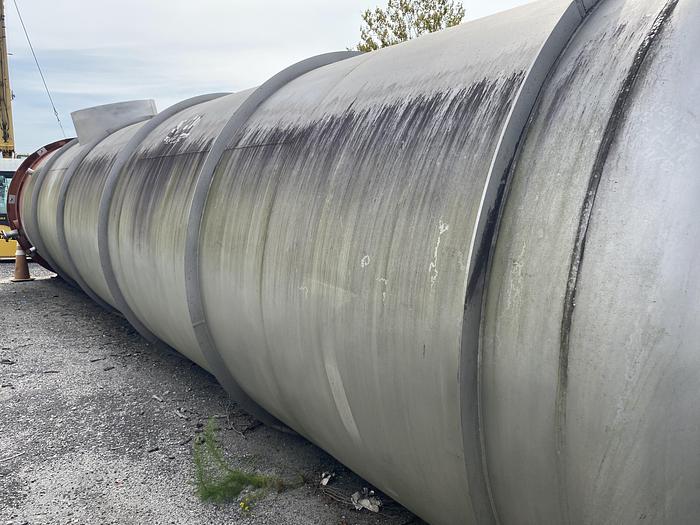

UNUSED Offenhauser Co. 14,455 gallon vertical 304 stainless steel scrubber. 8 1/2’ diameter X 31’-10 high straight side. Internal rated 15 PSIG @ 150 degrees F. S/N 4108-D.  24” side top and side bottom manways. Unit has (2) 2" flanged ports for level, (2) 1 1/2" flanged ports for differential pressure, (1) 2" flanged port for liquid inlet, (1) 4” flanged port for liquid outlet, (1) 44" gas inlet and (1) 44" gas outlet.   5 insulation support rings. Internal includes a packing support and a demister (demister is made up of 6" thick 304 stainless steel mesh made  up of (8) equal sections that are removable from side manway). Includes ladder with safety cage and 2 semi-circle cat walks. Dished top and bottom, Mounted on carbon steel skirt. Weight 26,144#.

Specifications

ManufacturerOffenhauser Co.
ConditionUsed
Stock NumberAVIR0316-0103
