Pfaudler 1000 gallon #5015 glass lined reactor

No longer available

Pfaudler 1000 gallon #5015 glass lined reactor

Wilmington, NC

Description

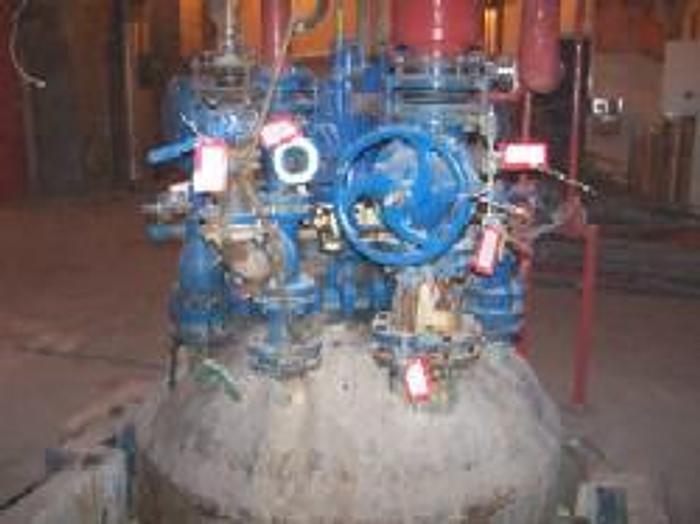

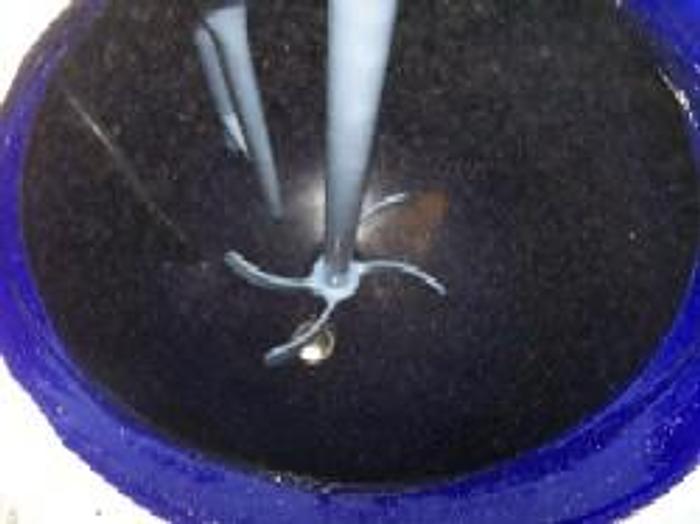

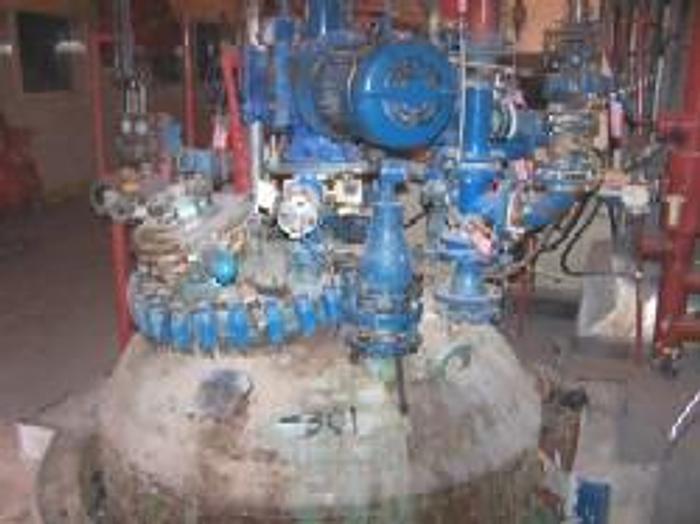

Used Pfaudler 1000 gallon #5015 glass lined reactor model RA-60-1000 HPJCWVA.  60" diameter x 73" high straight side.  Welded dished heads.  Internal rated 100/FV @ 450 degrees F.  1/2 pipe coil jacket rated 150/150 @ 450 degrees F.  NB# 44805.  Equipped with 10/5 HP 33" span cryo-lock agitator driven through 4 DTW drive.  Includes H baffle.  Fittings top: (1) 30" cover with 12" x 16" manway (2) 2" (1) 4" sight glass (4) 4" flanges and (1) 8".  Center bottom 3" drain.  Lug mounted.  Stainless steel diptube.  FOB: Wilmington, NC

Specifications

ManufacturerPfaudler
ModelRA-60-1000 HPJCWVA
ConditionUsed
Stock NumberDSM02002-0301
