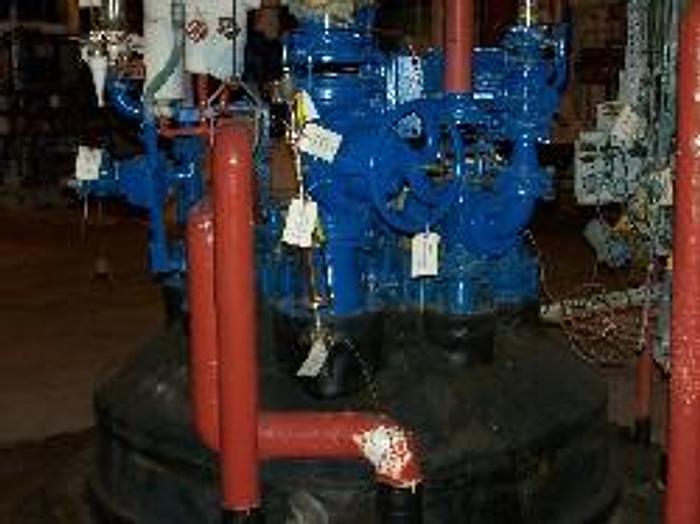

Pfaudler 1000 gallon #5015 glass lined reactor

No longer available
Pfaudler 1000 gallon #5015 glass lined reactor
Location:Wilmington, NC
Description

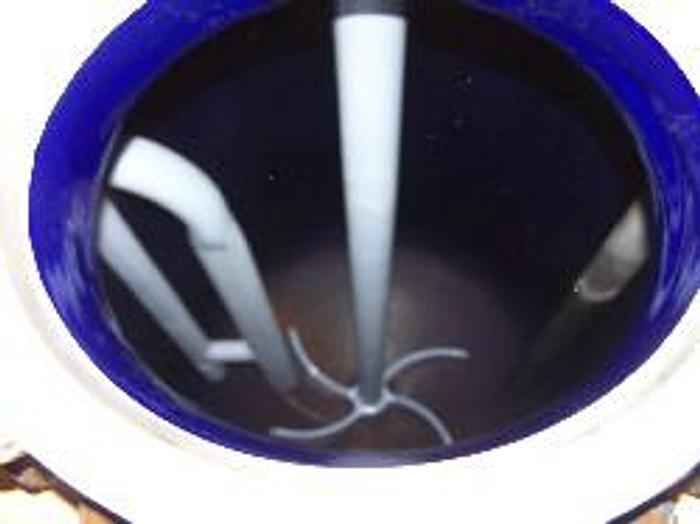

Used Pfaudler 1000 gallon #5015 glass lined reactor. Model RA-60-1000. 60” diameter X 73” high straight side. Welded dished heads. Internal rated 100/FV @ 450oF. Half pipe coil jacket rated 150 PSI @ 450oF. NB# 45873. MFR# R190-0038. Equipped with 10/5HP #4 DTW drive. Ratio 1.5-1 RPM 117/58.5. Cryolock type agitator, H baffle, and diptube. 3” center bottom drain. Mounted with lugs. Fittings Top: (1) manway, (4) 4”, and (1) 8” flange. Built 1990. FOB: Wilmington, NC
Specifications
Manufacturer | Pfaudler |
Model | RA-60-1000 |
Year | 1990 |
Condition | Used |
Stock Number | DSM02002-0115 |
